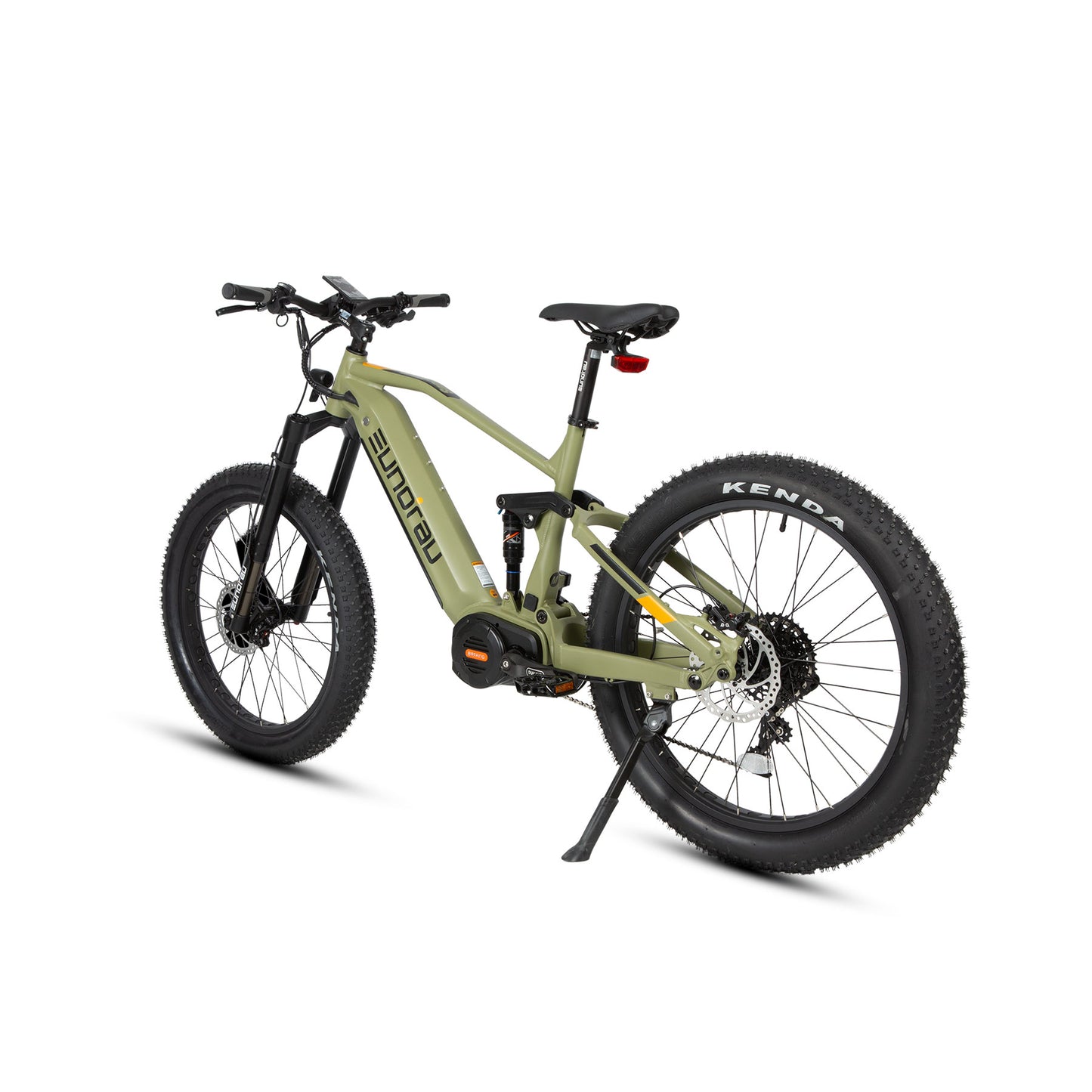

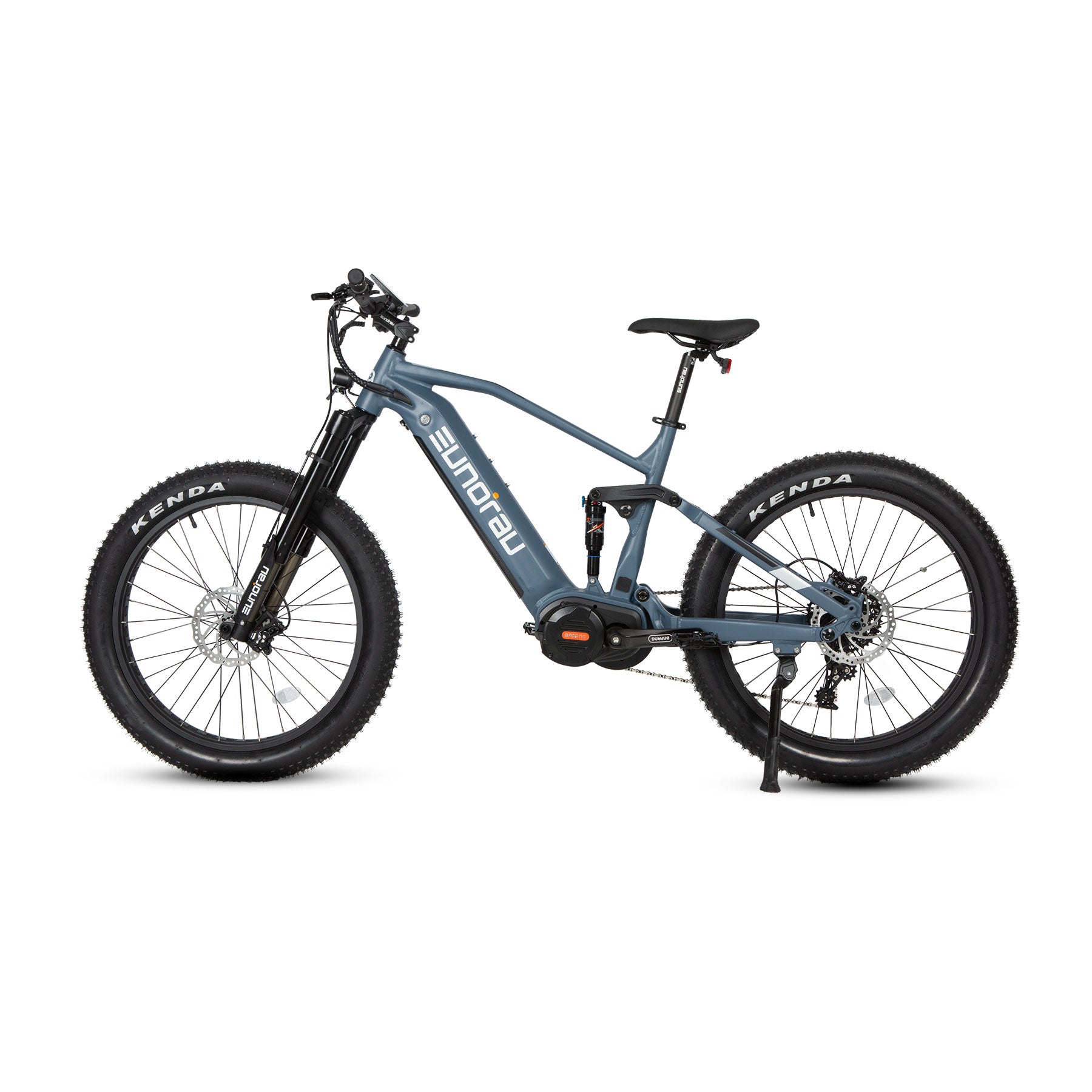

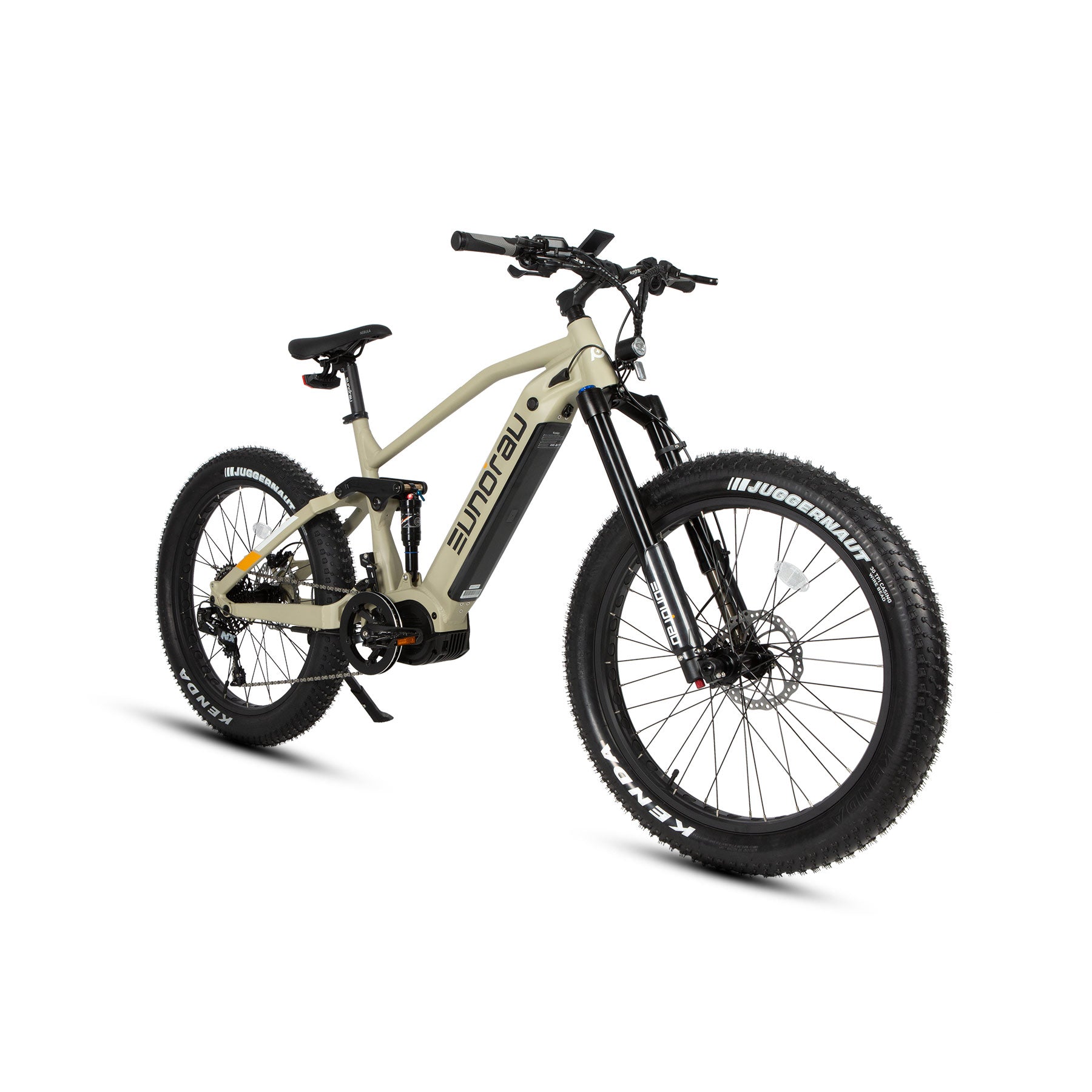

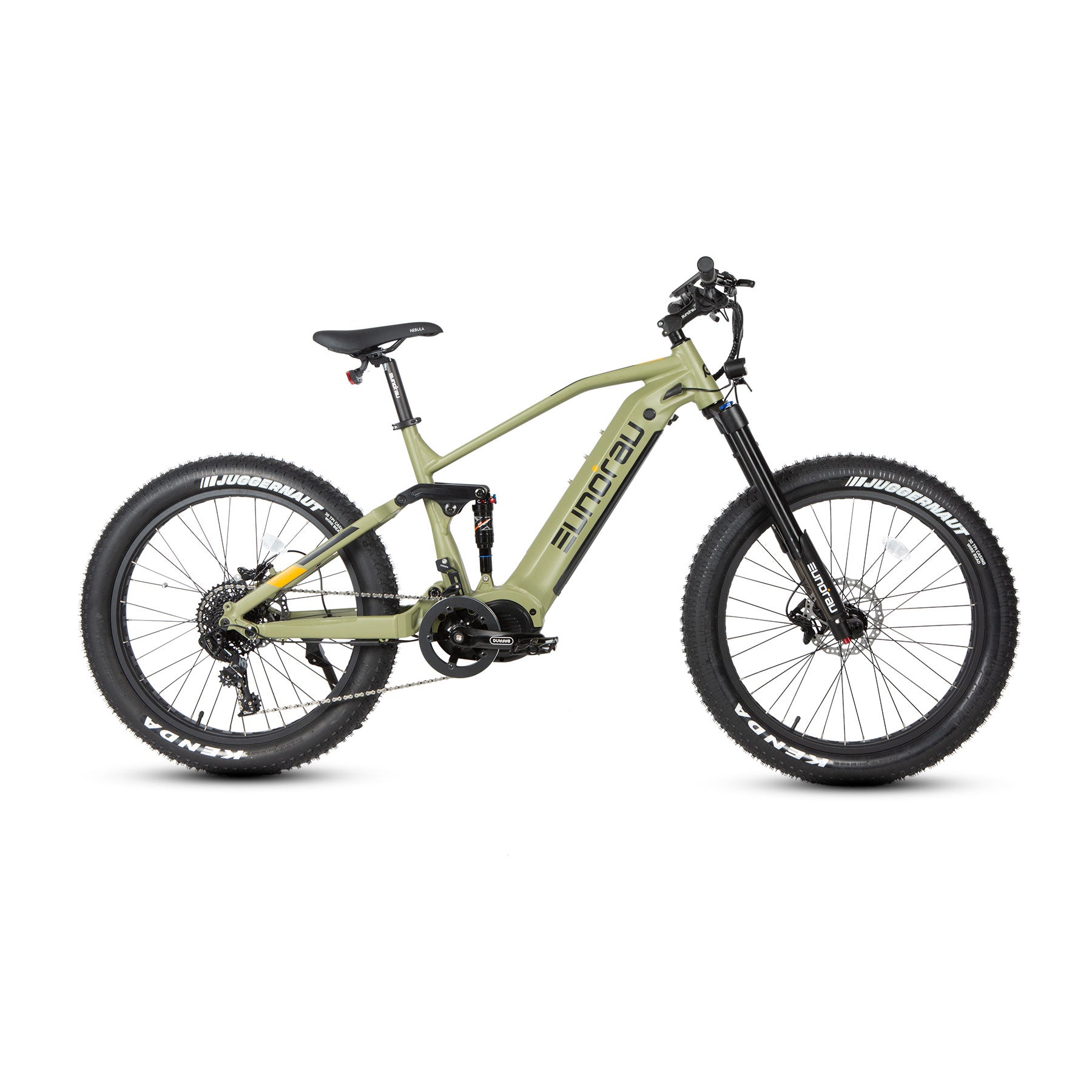

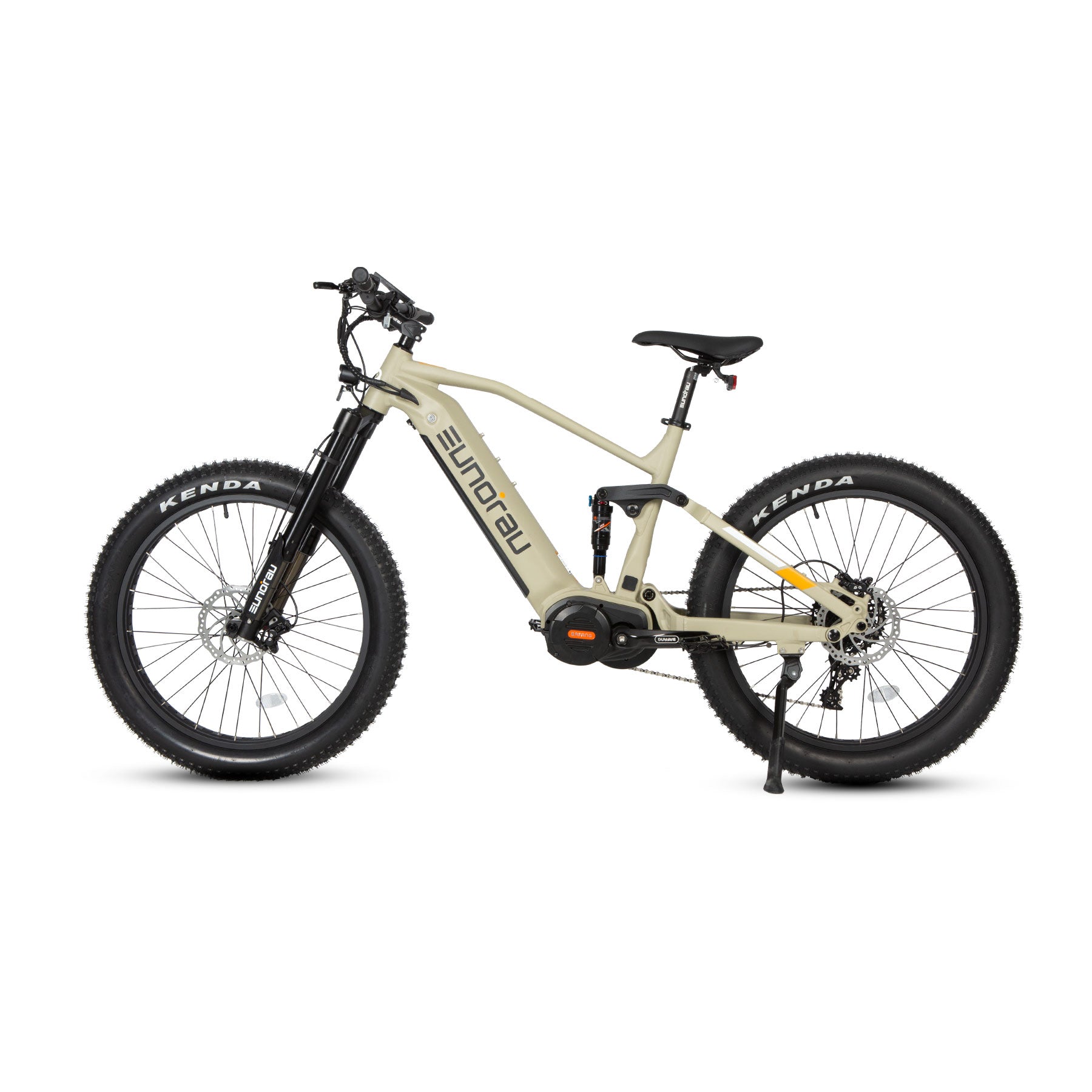

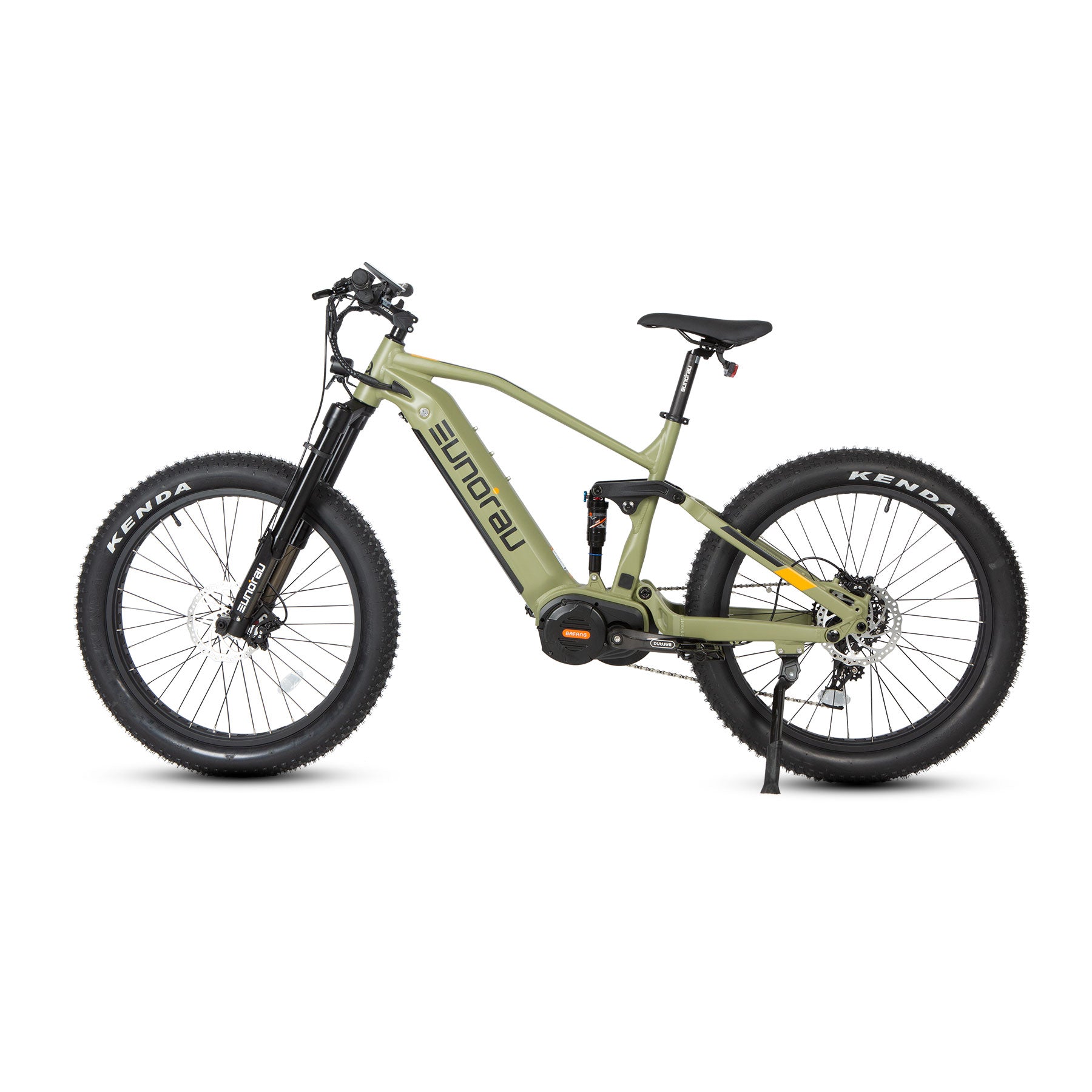

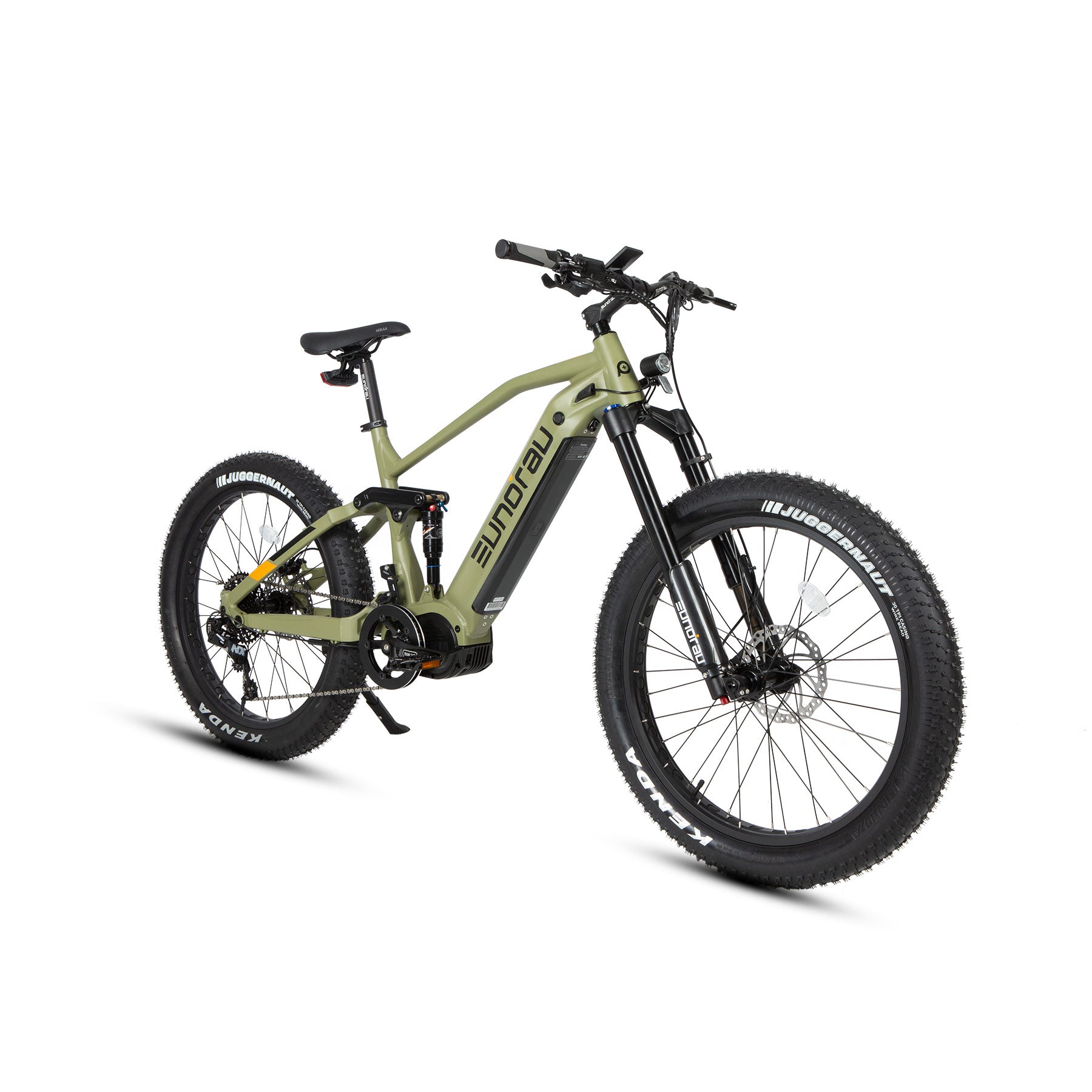

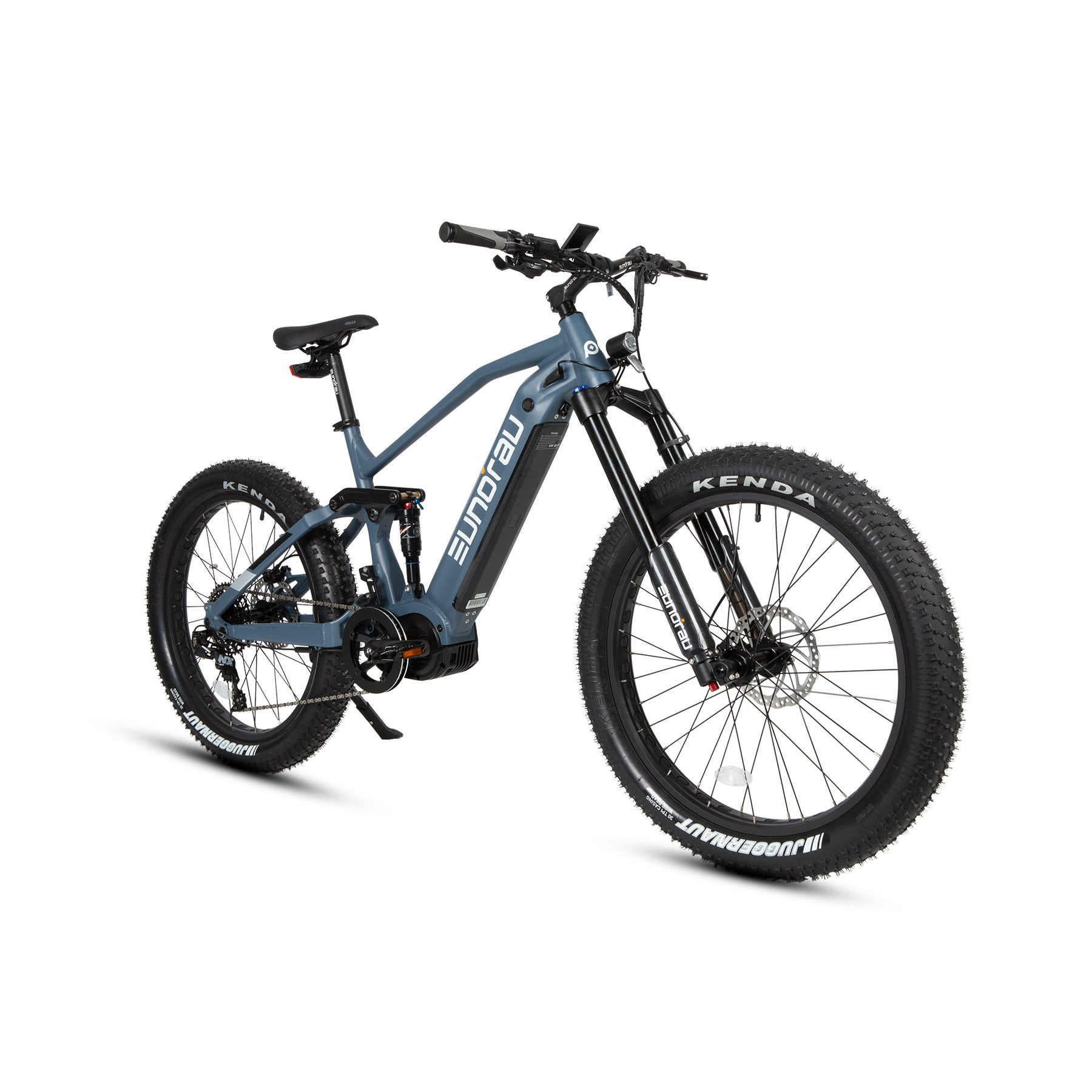

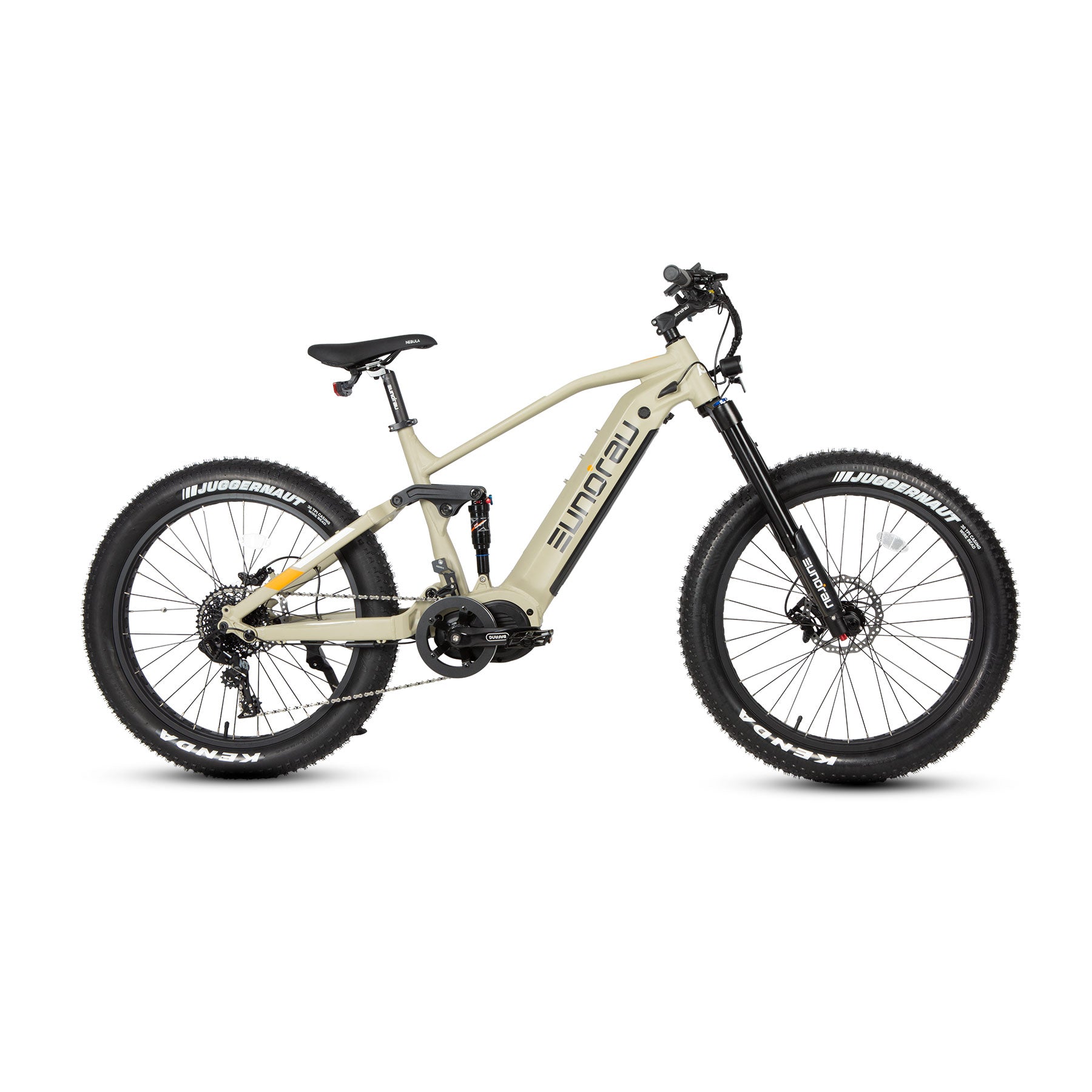

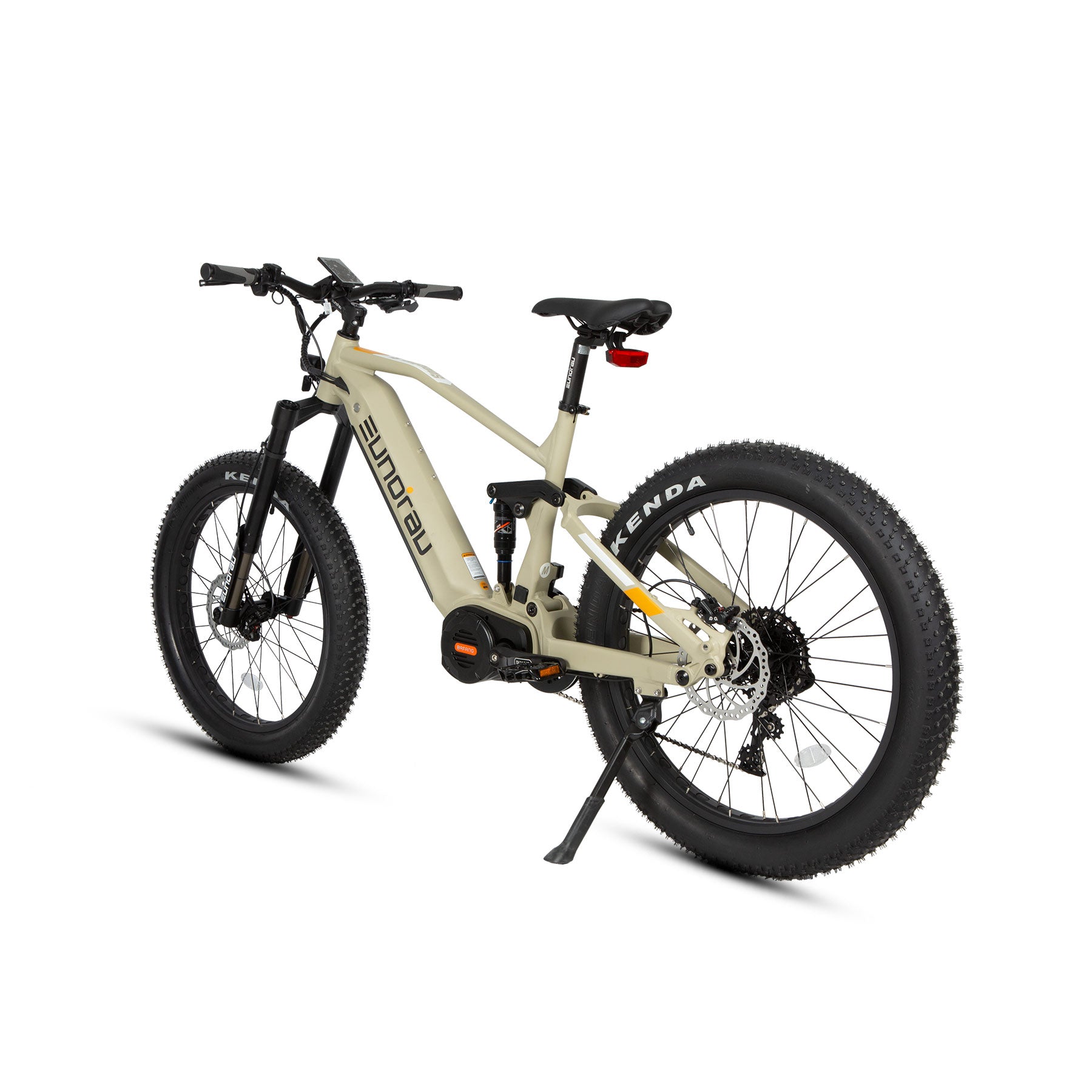

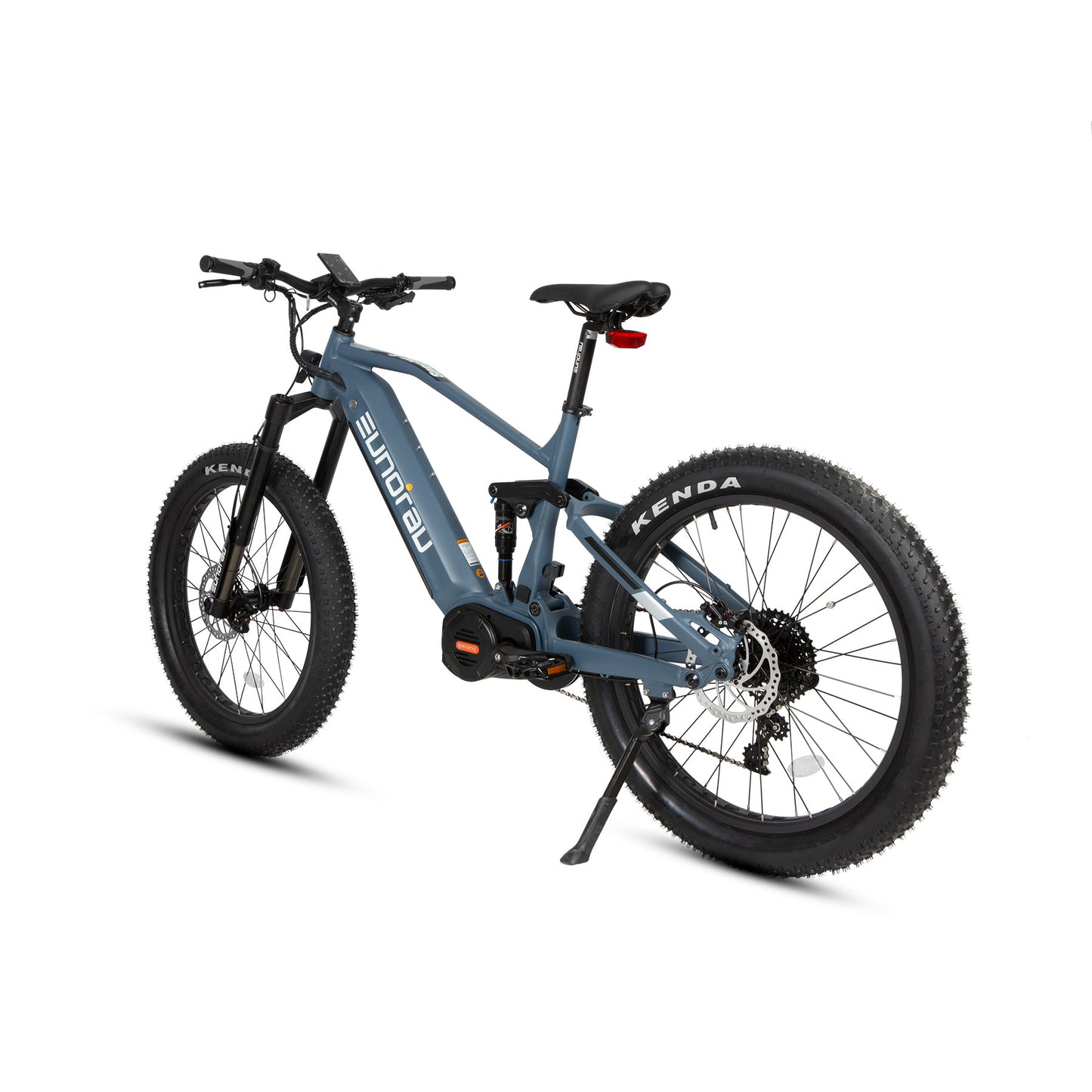

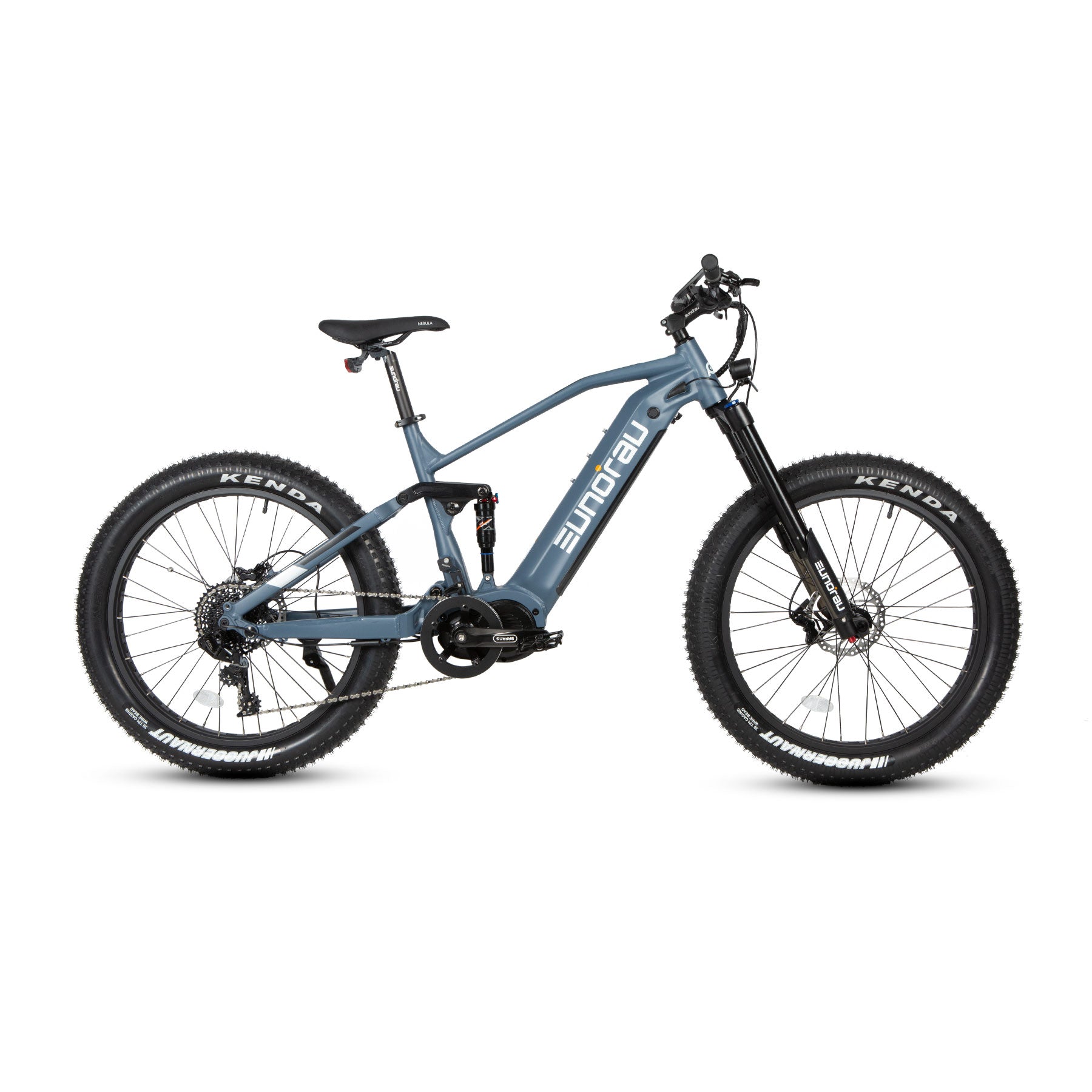

Silent-Raptor GTX

Specification

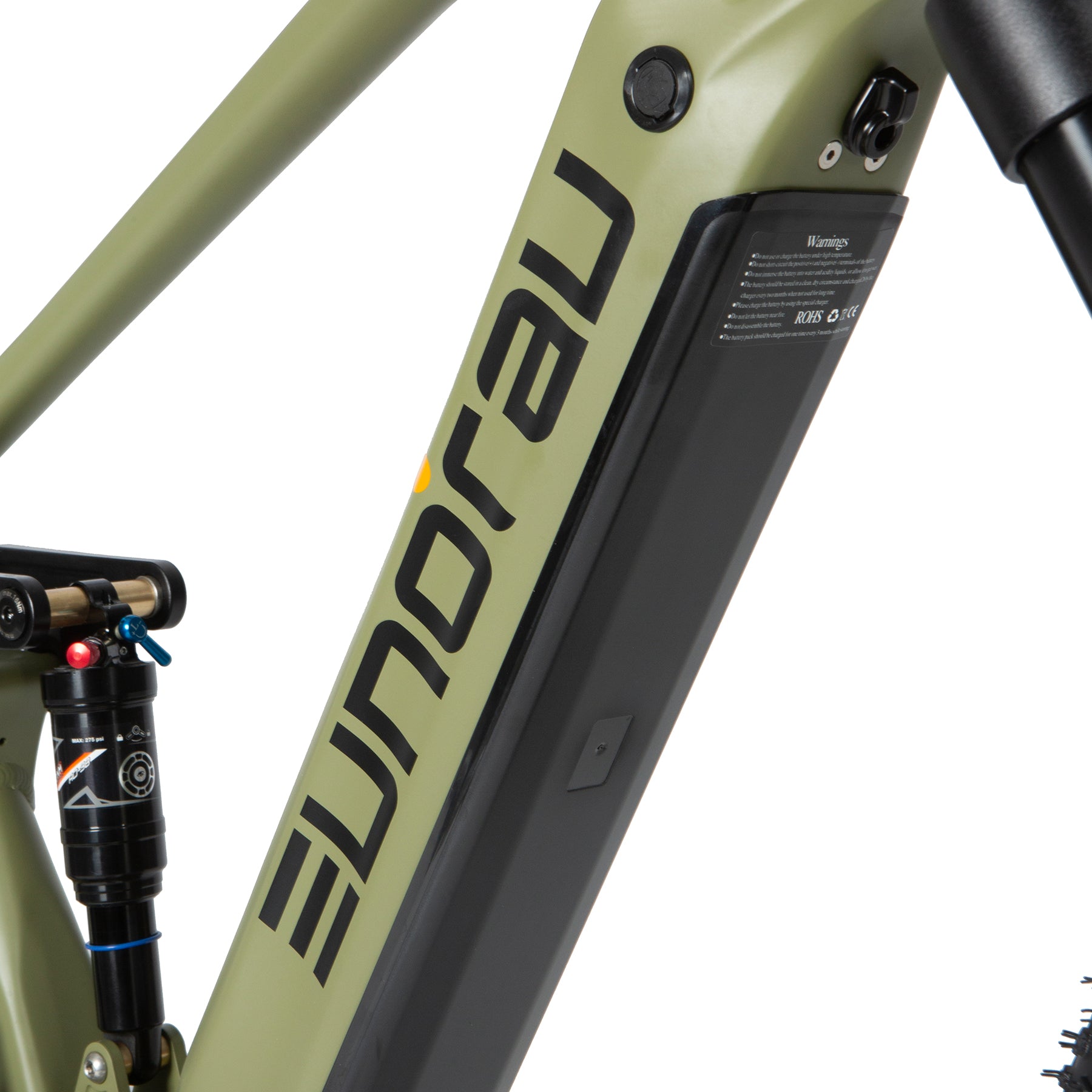

• Battery: 48V 17.5Ah + Optional Second Battery
• Range: 80 miles (48V 17.5Ah LG Cells + Second Battery 14Ah)

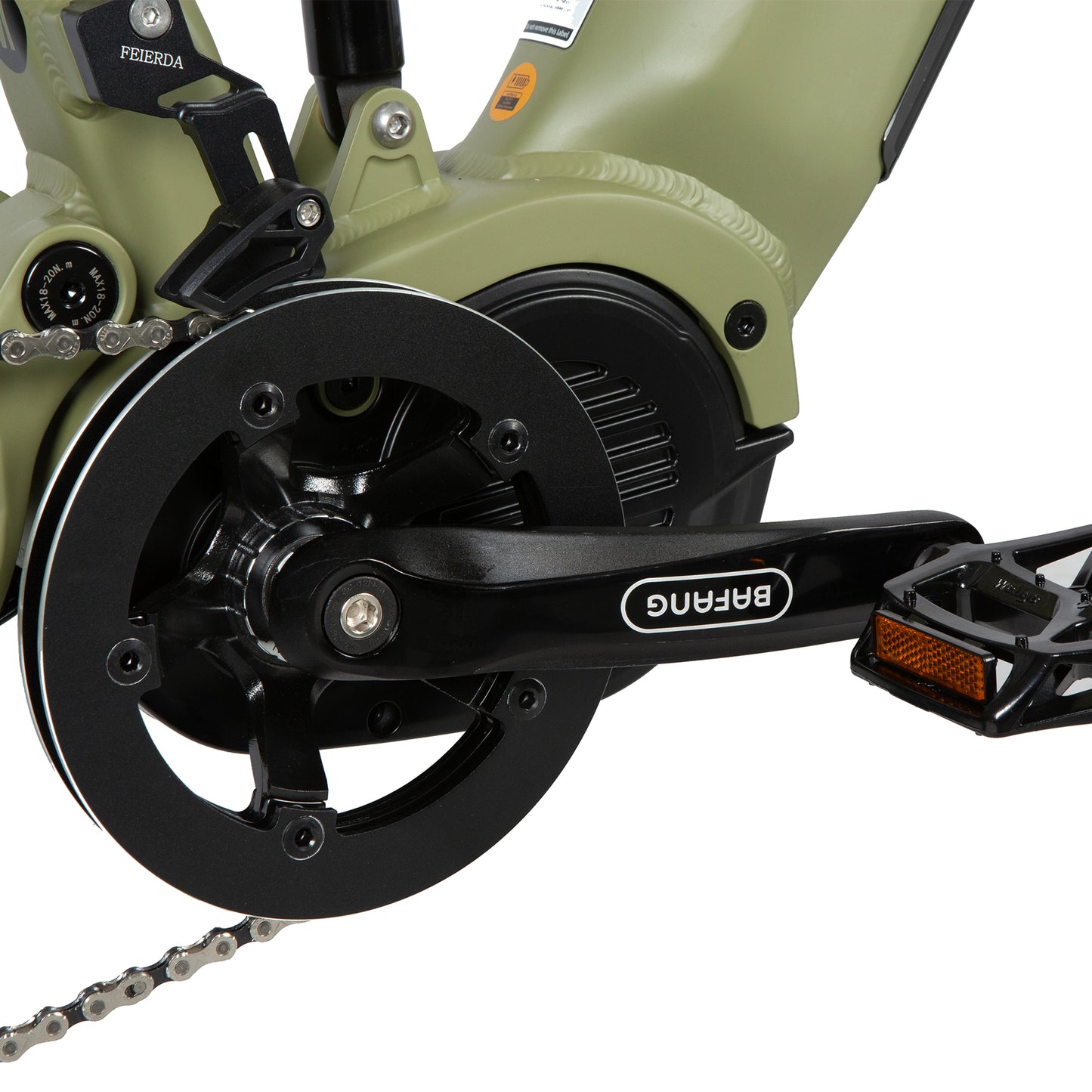

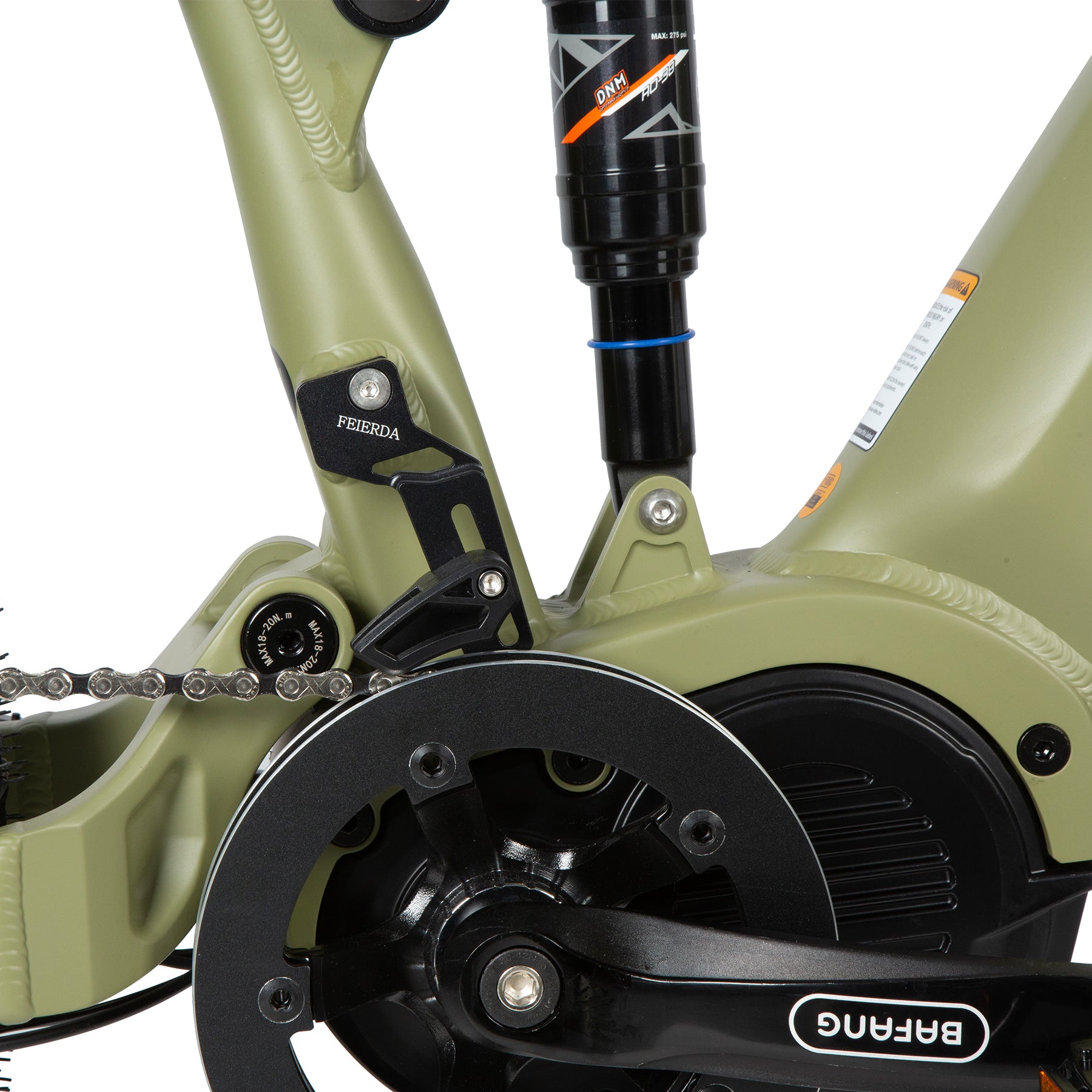

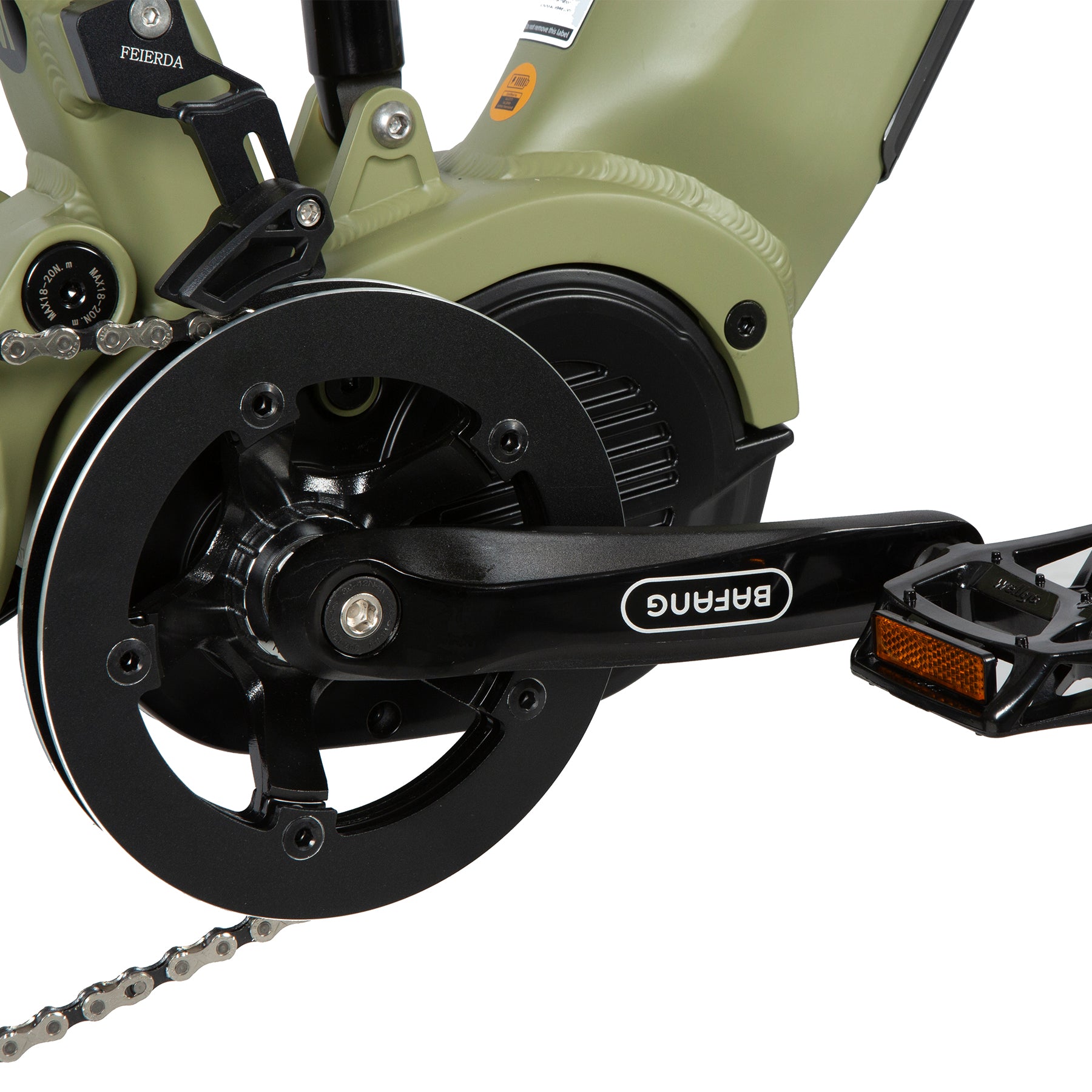

• Motor: 48V1000W Bafang M620 mid motor with 160 N.m torque
• Total Payload Capacity: 300 lbs
• Recommended Rider Heights: 5'3" ~ 6'4"
• Maximum Speed: 28MPH / 45KMH

• Charger: US standard 2.0 A smart charger
• Controller: 48V 30A

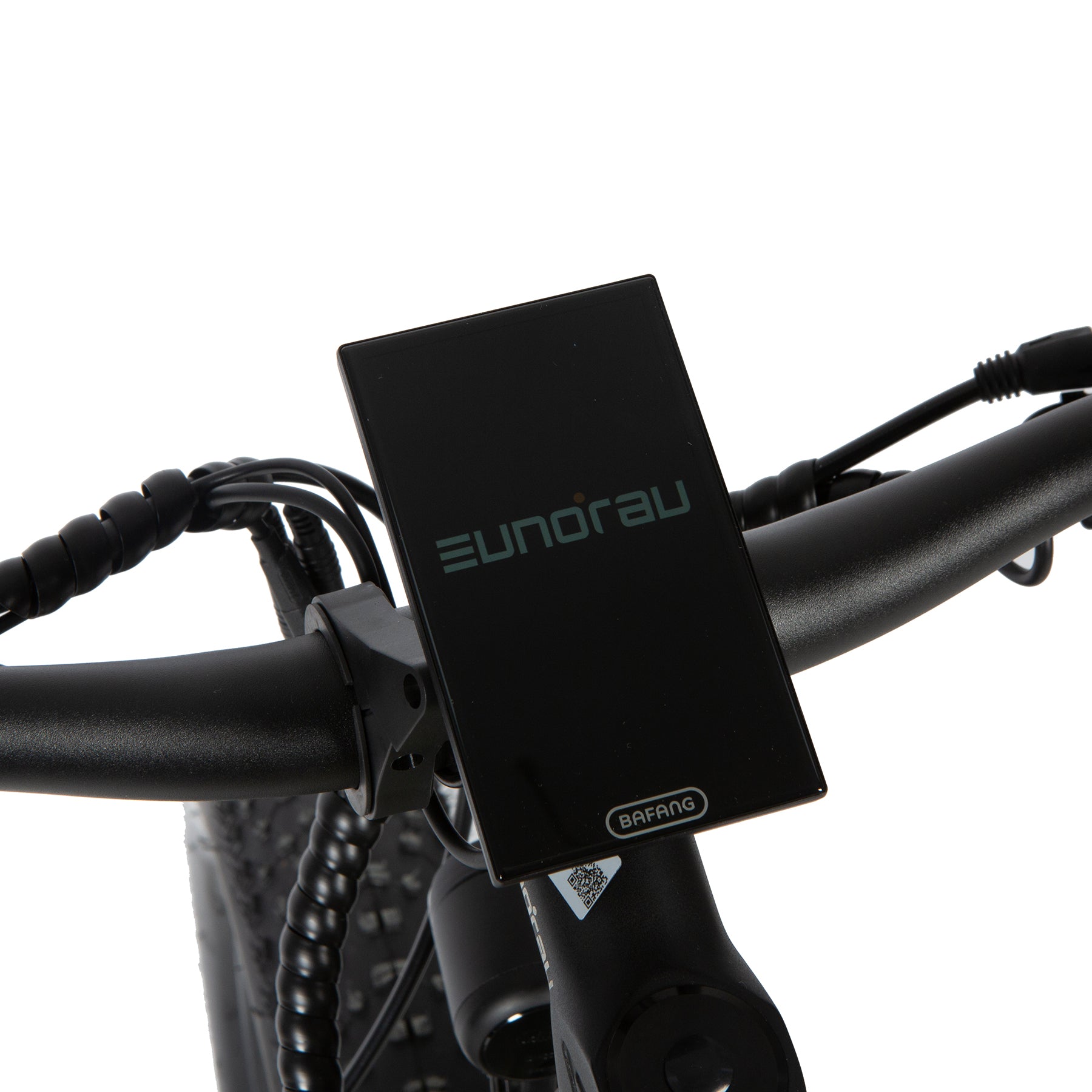

• Display: DP C010.CB display, CAN protocol
• Weight: 88.2 lbs
• Pedal Assist Intelligent: 0~5 level pedal assist
• Box Dimensions: (cm) 172 L x 35.5 W x 85 H

Components

• Tires: KENDA sport tires 26" x 4.0"

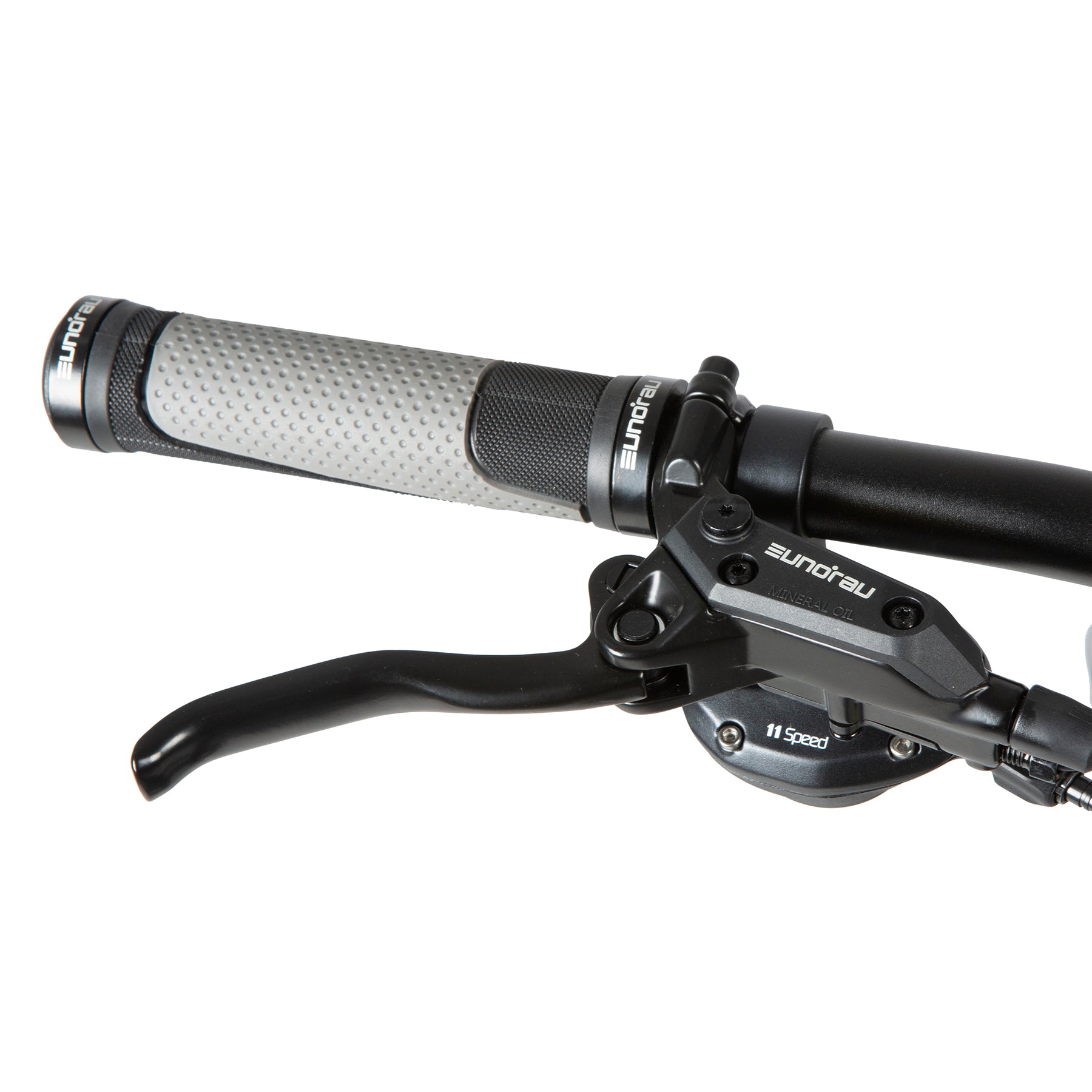

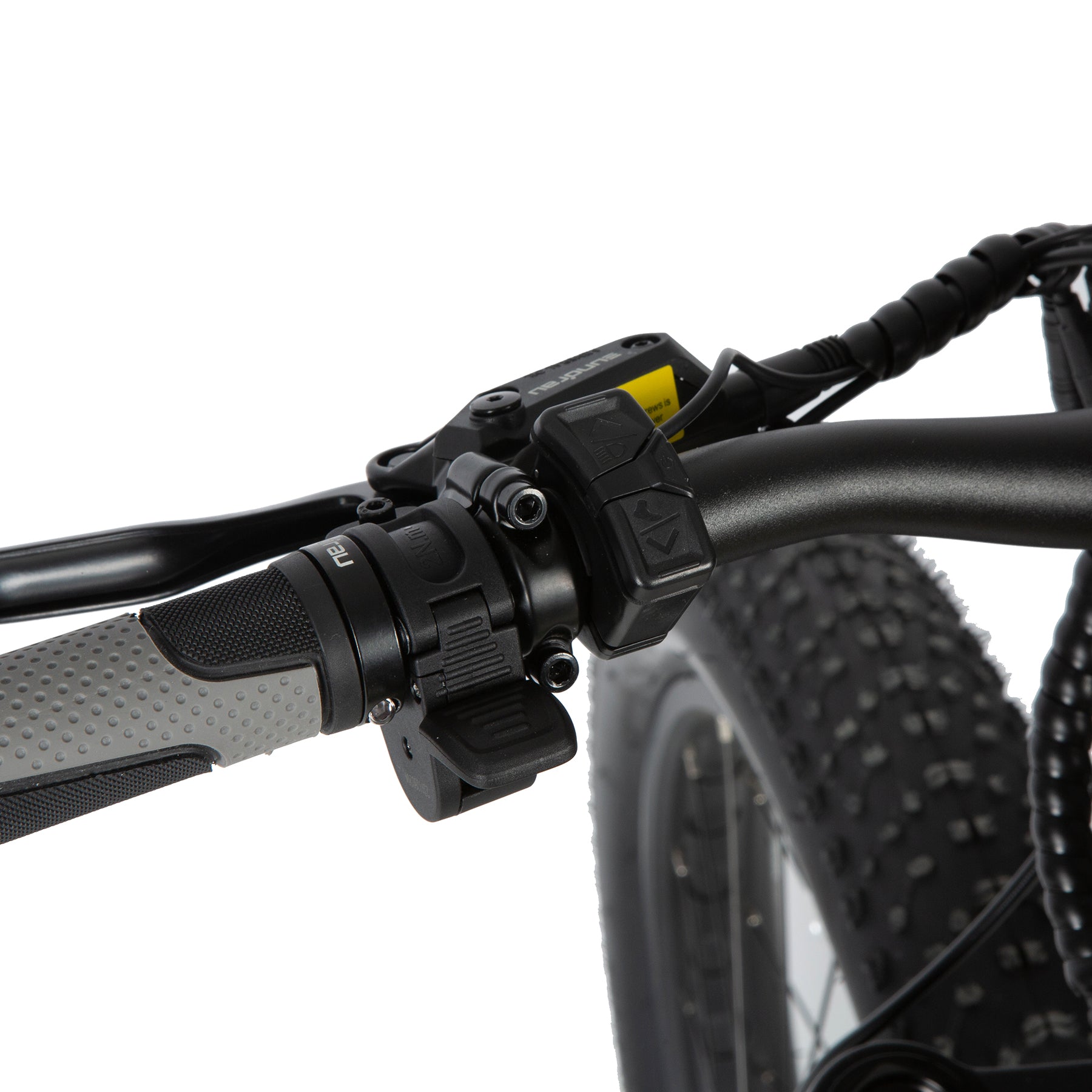

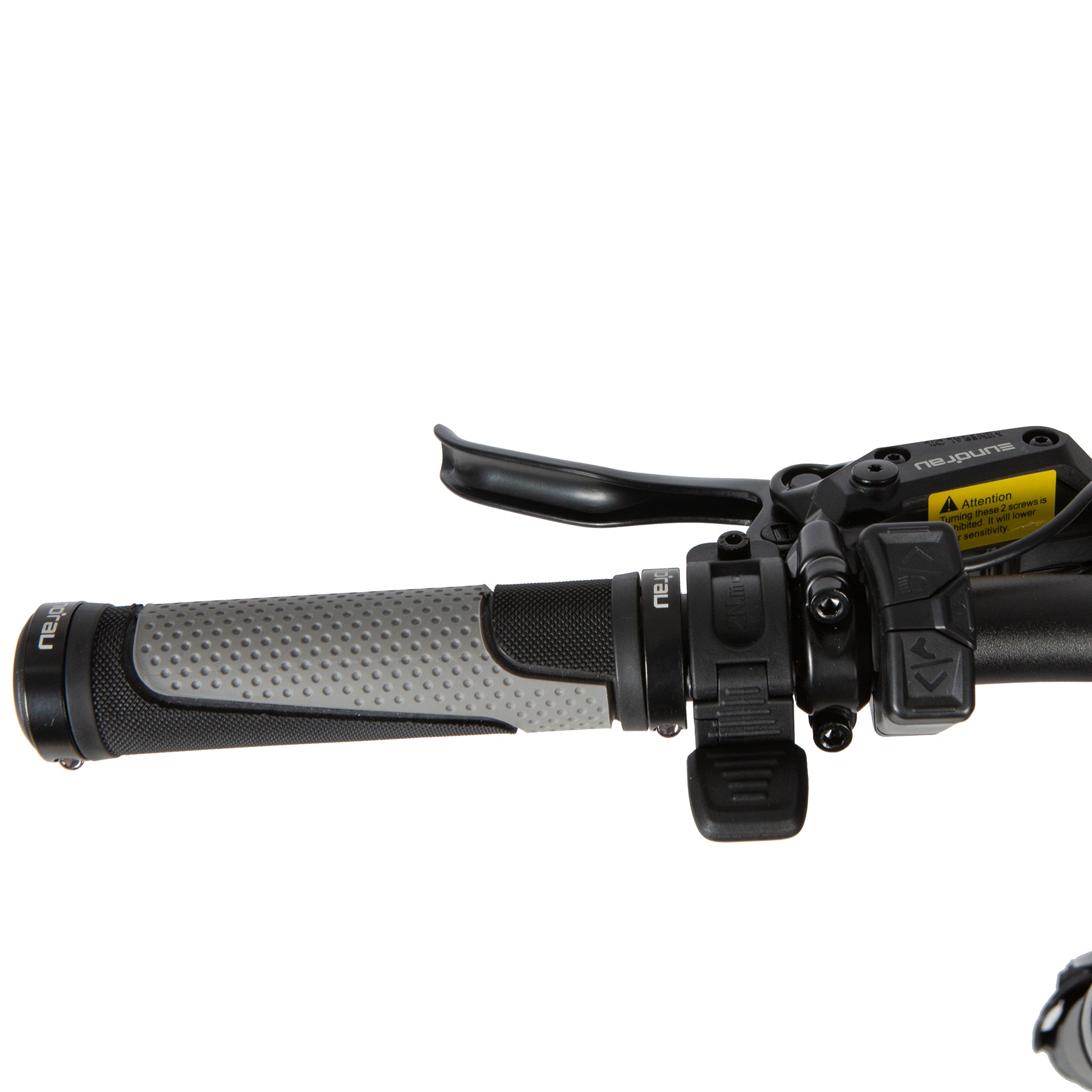

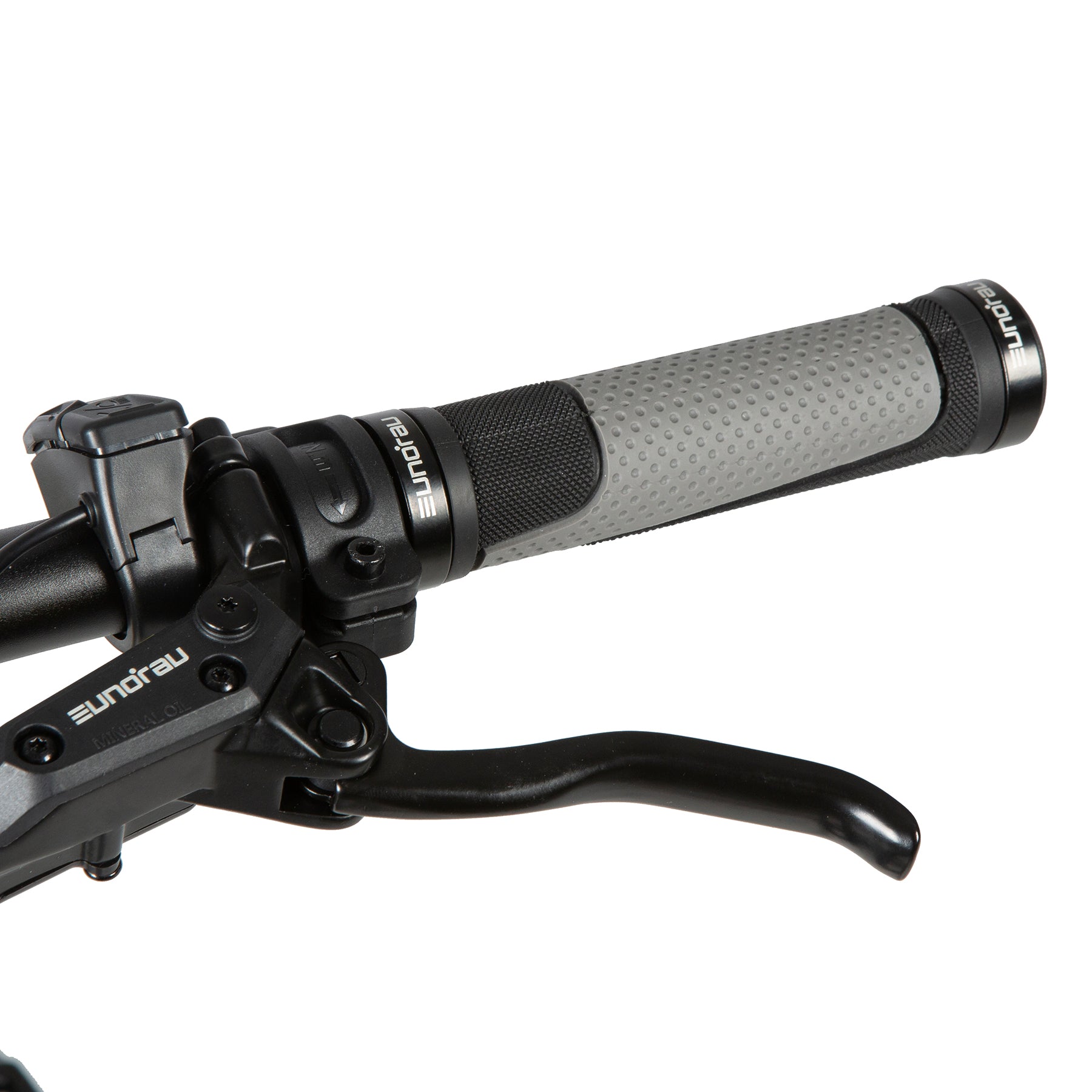

• Brake lever: HD-E500 Hydraulic disc brakes levers with motor cutoff switch

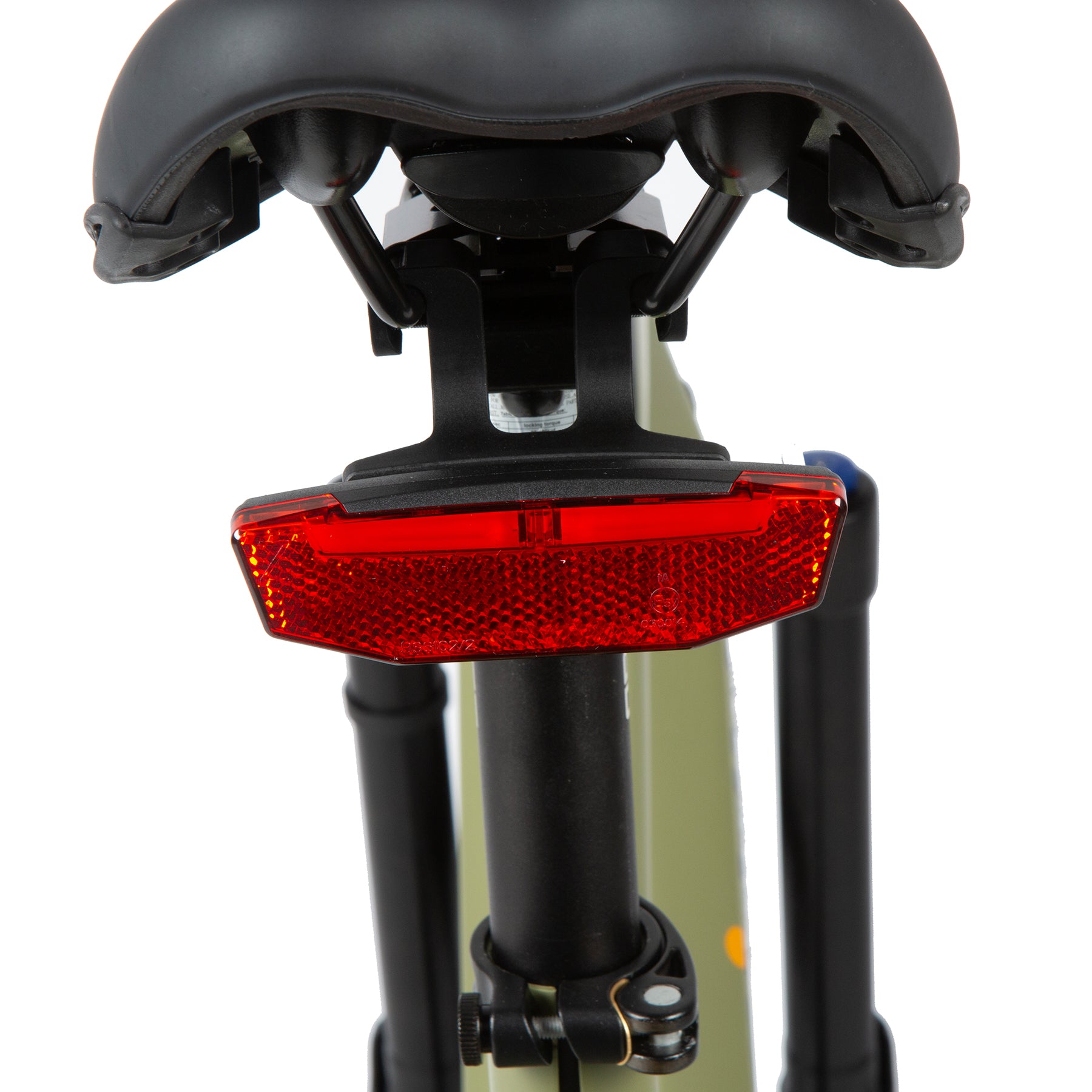

• Rear Light: Taillight

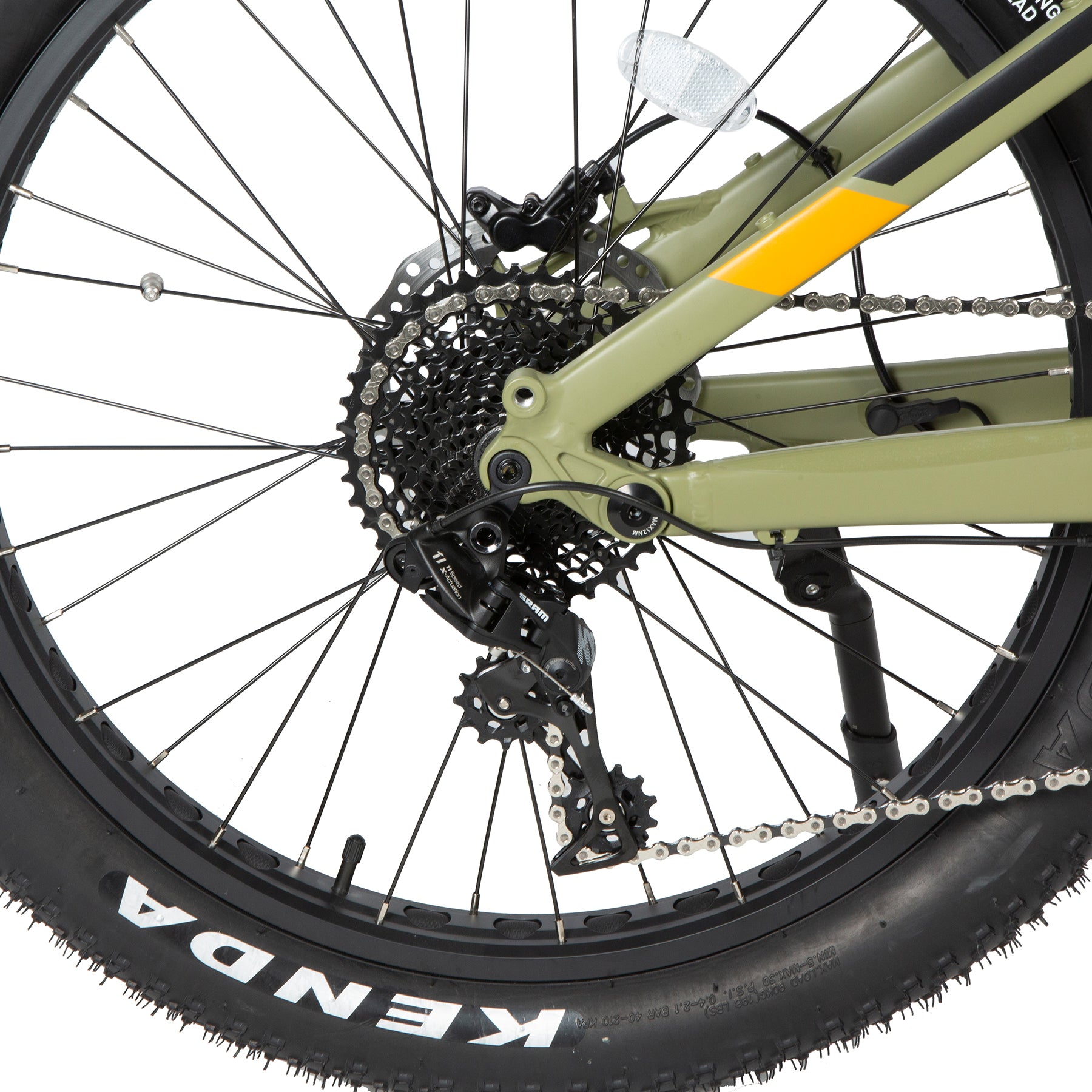

• Shifter: SRAM NX 1x11 speed gear shift system

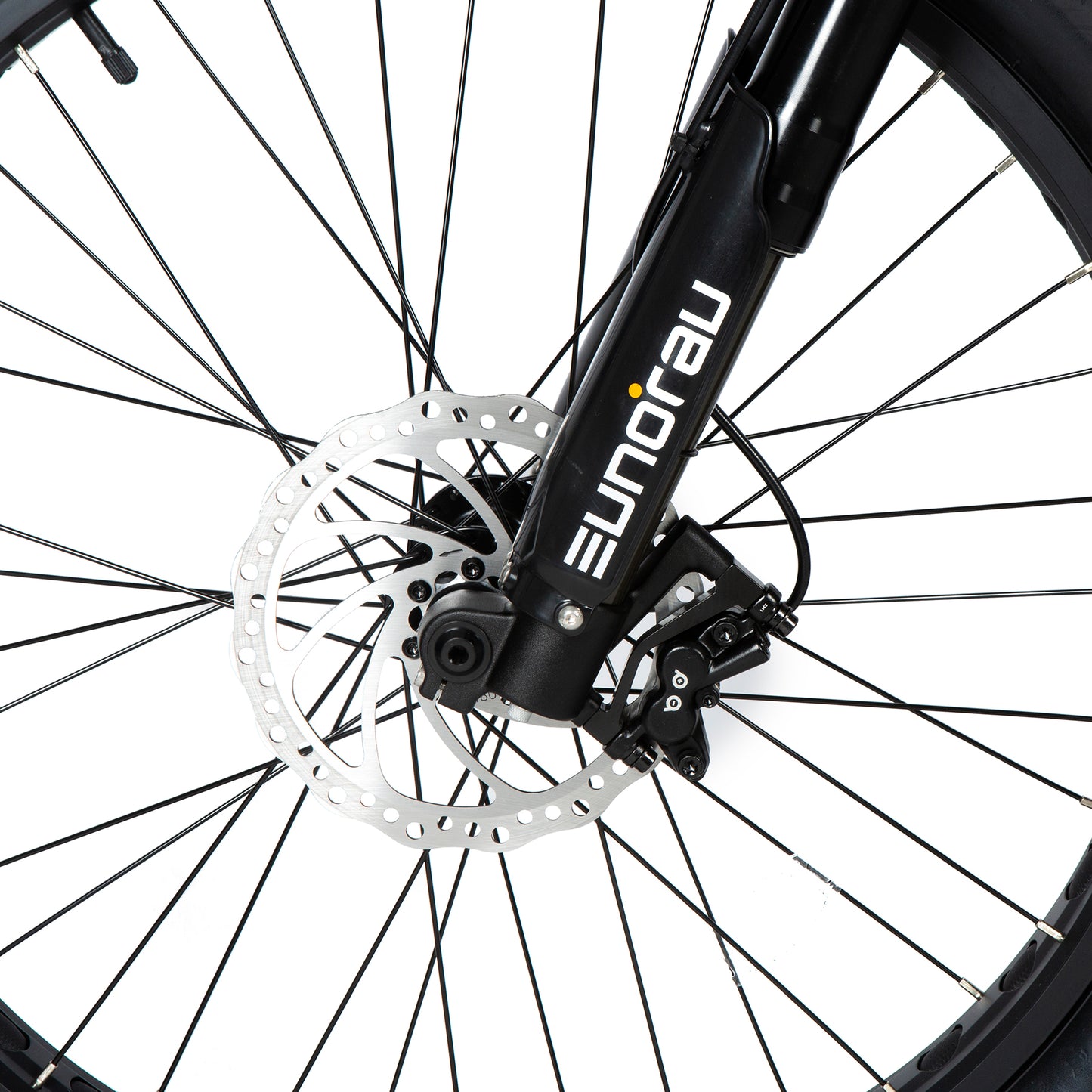

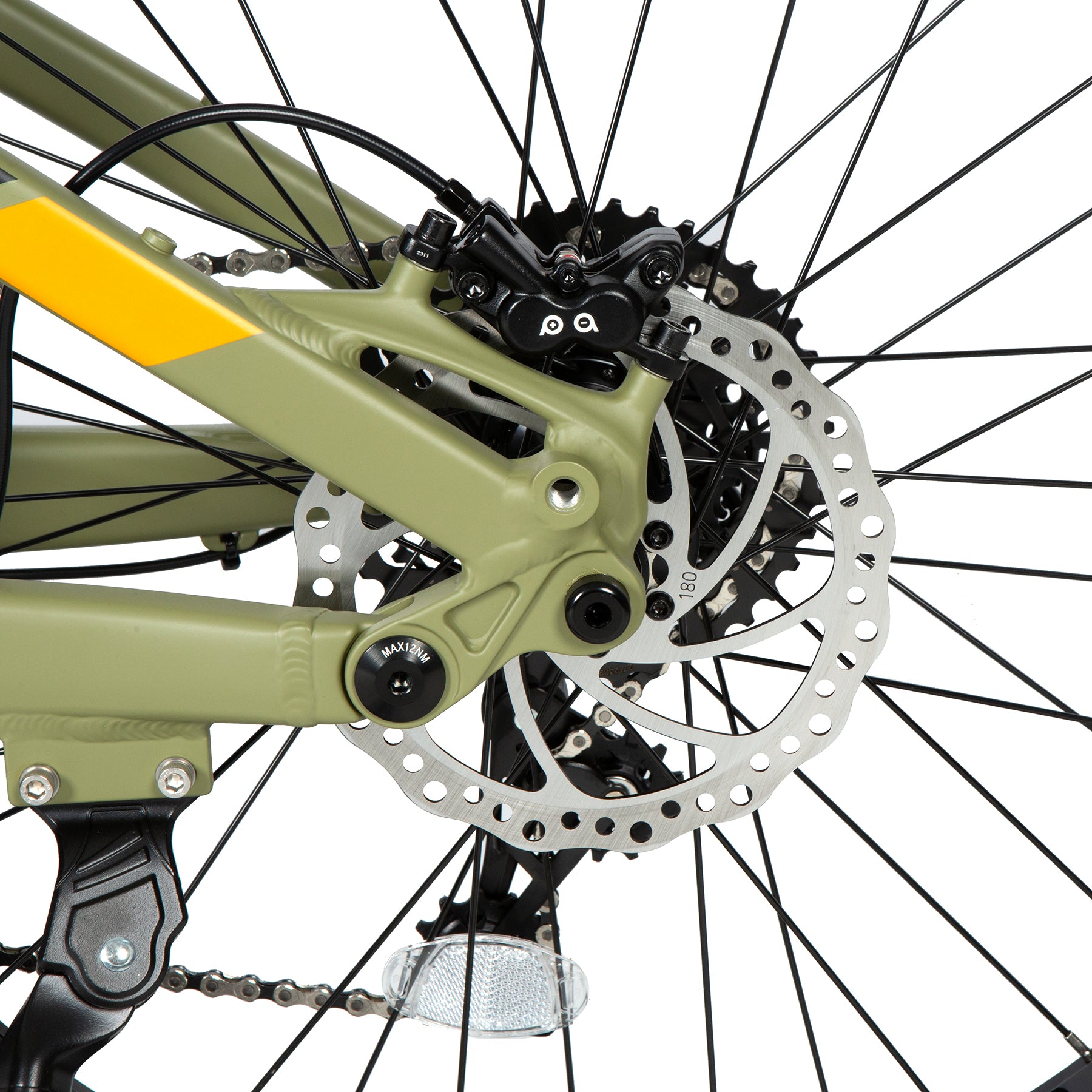

• Brake Rotor: 180MM hydraulic disc brakes
• Throttle: Thumb throttle

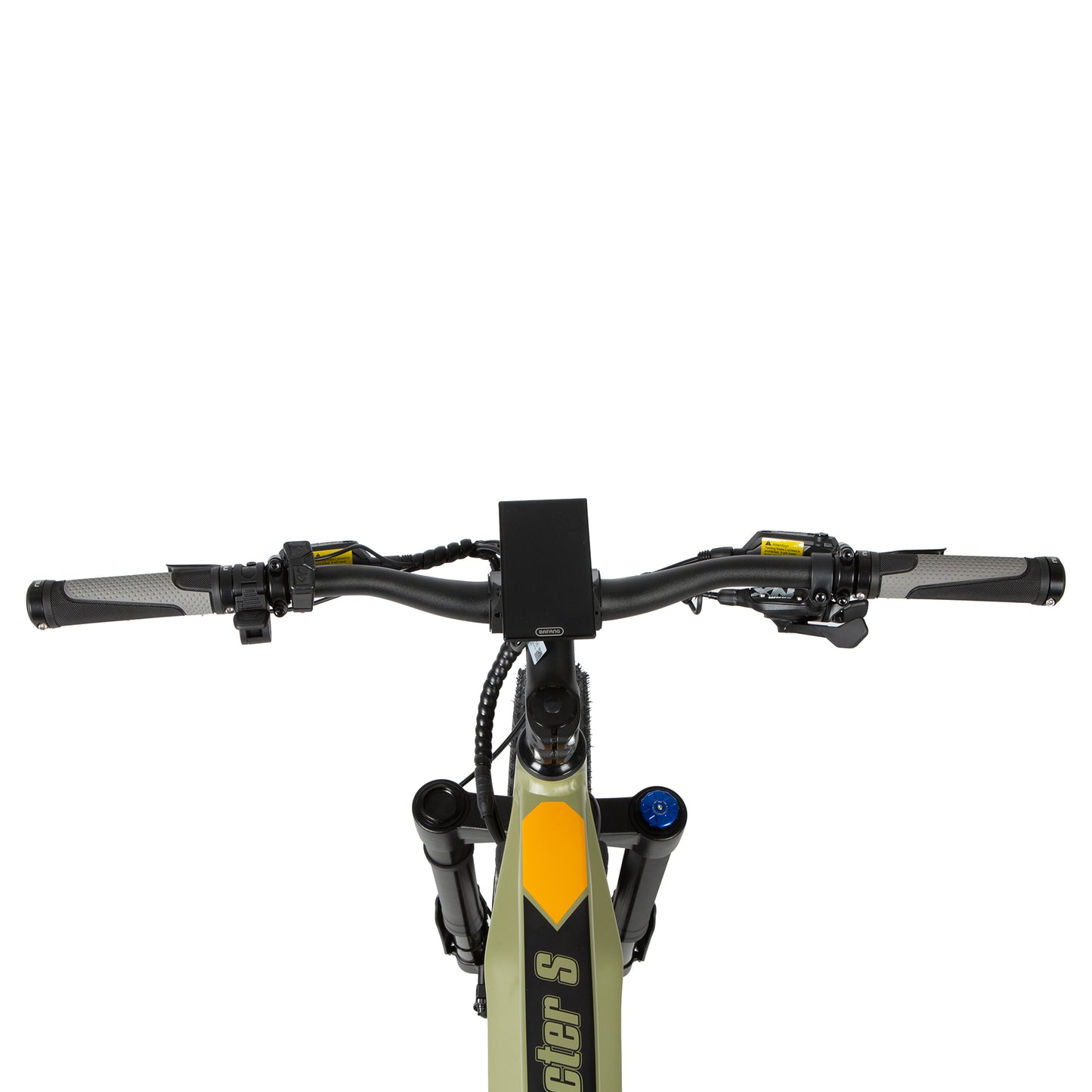

• Handlebar: Comfortable stem
• Crank: 170mm forged alloy
• Cassette: SRAM NX 11-42T

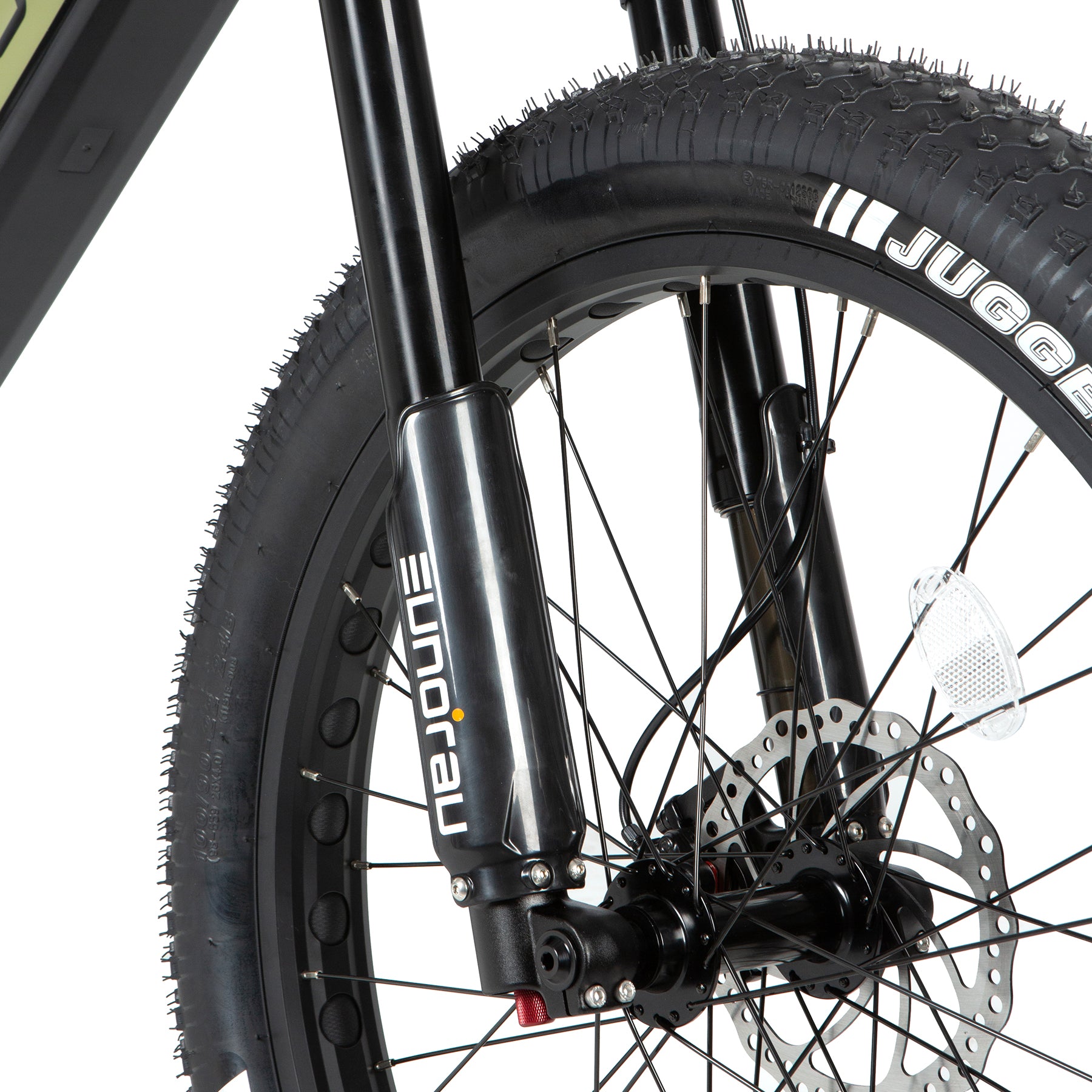

• Fork: EUNORAU inverted 140mm travel

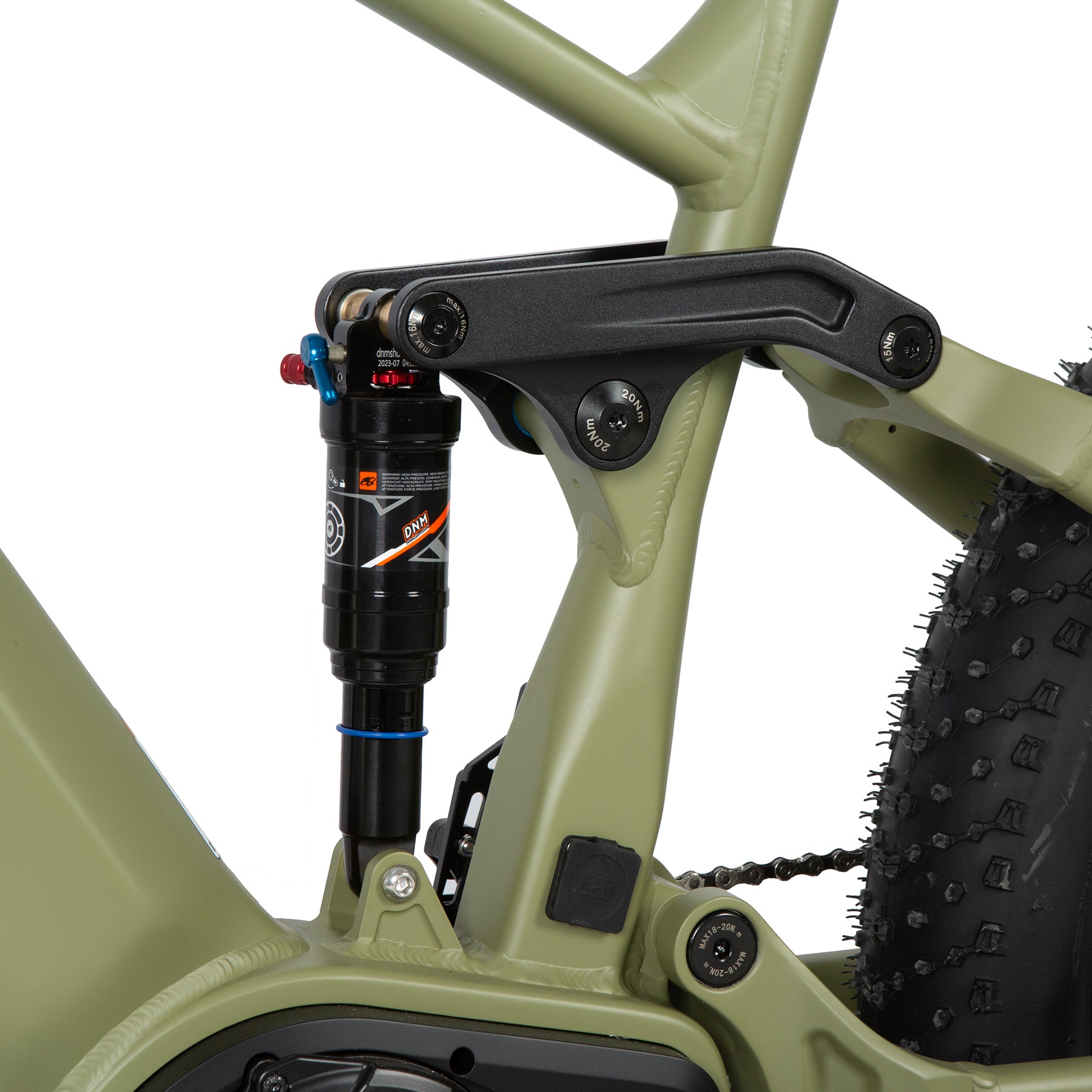

• Shock: DNM AO-38RC,190mm, Travel 50mm

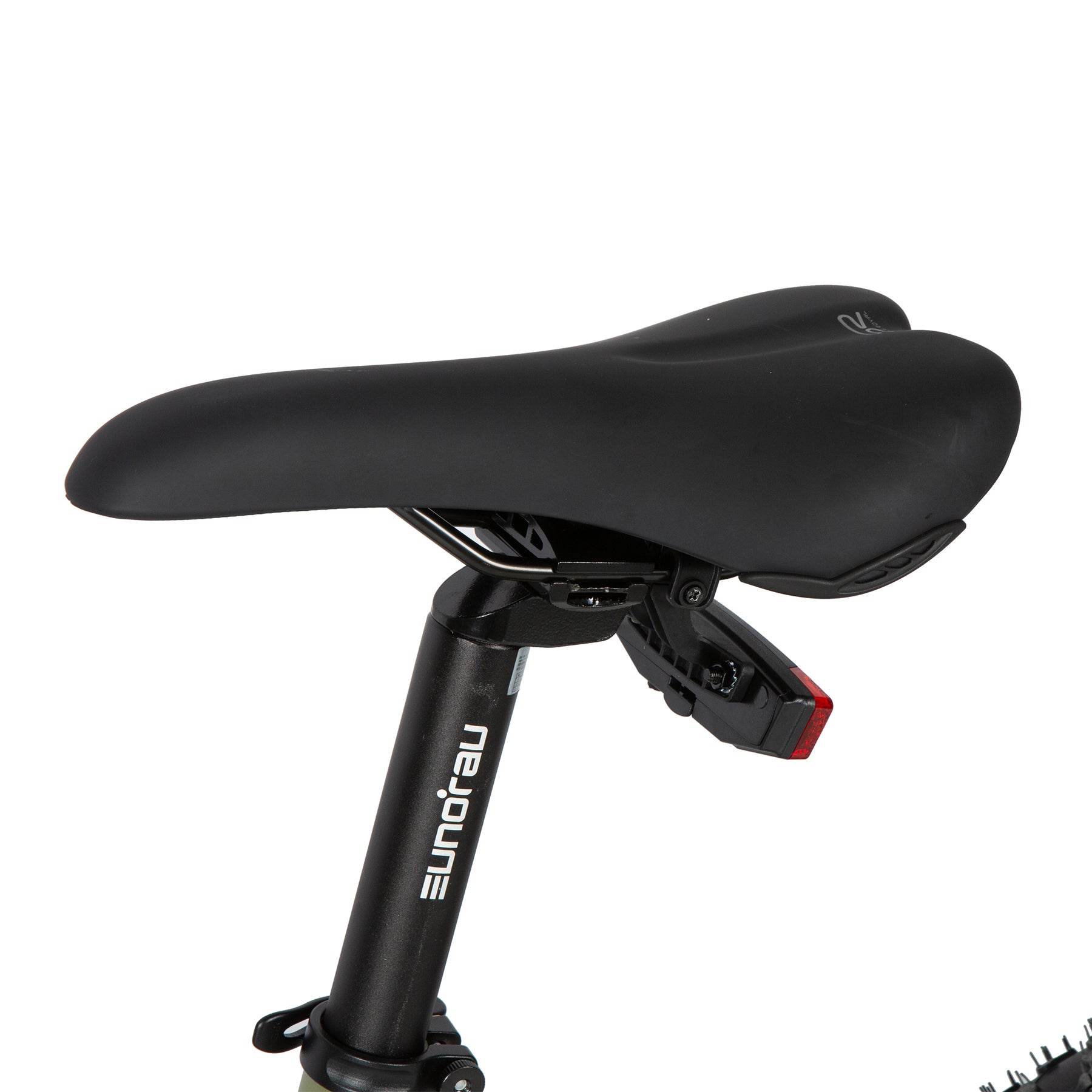

• Saddle: Selle Royal Saddle, Height to Ground 35.0"-42.5"
• Pedal: Nylon pedal with reflectors

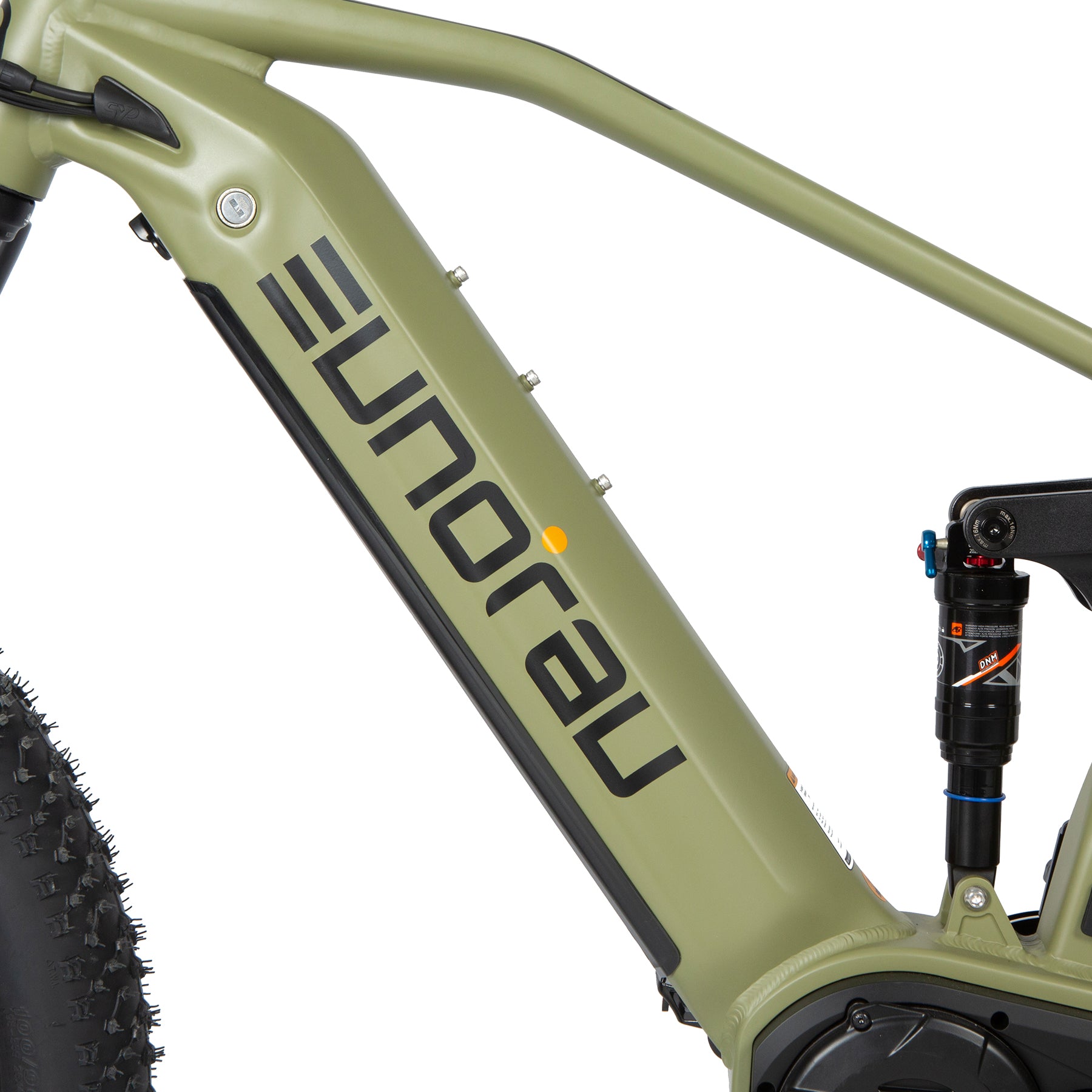

• Frame: Aluminum alloy 6061 full suspension

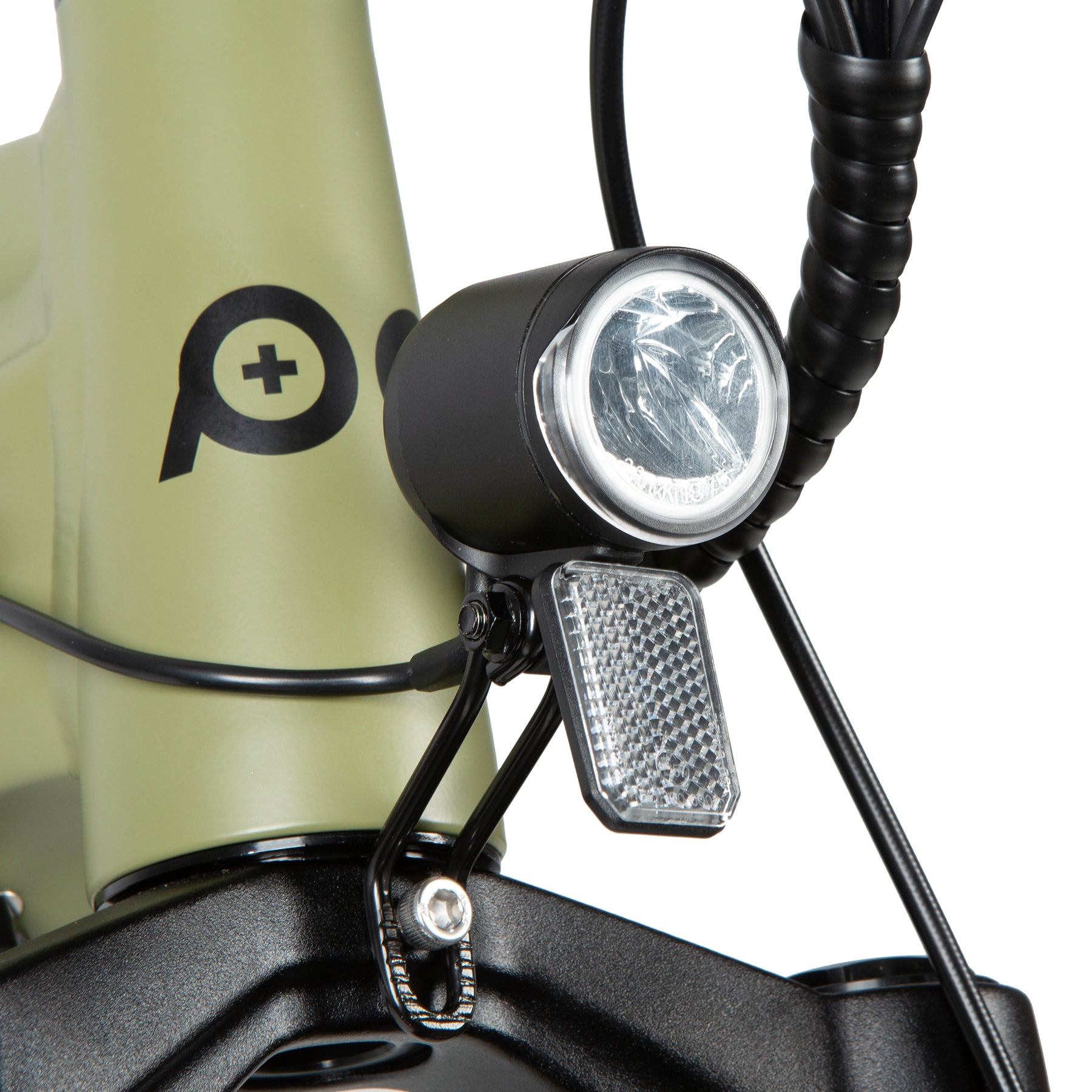

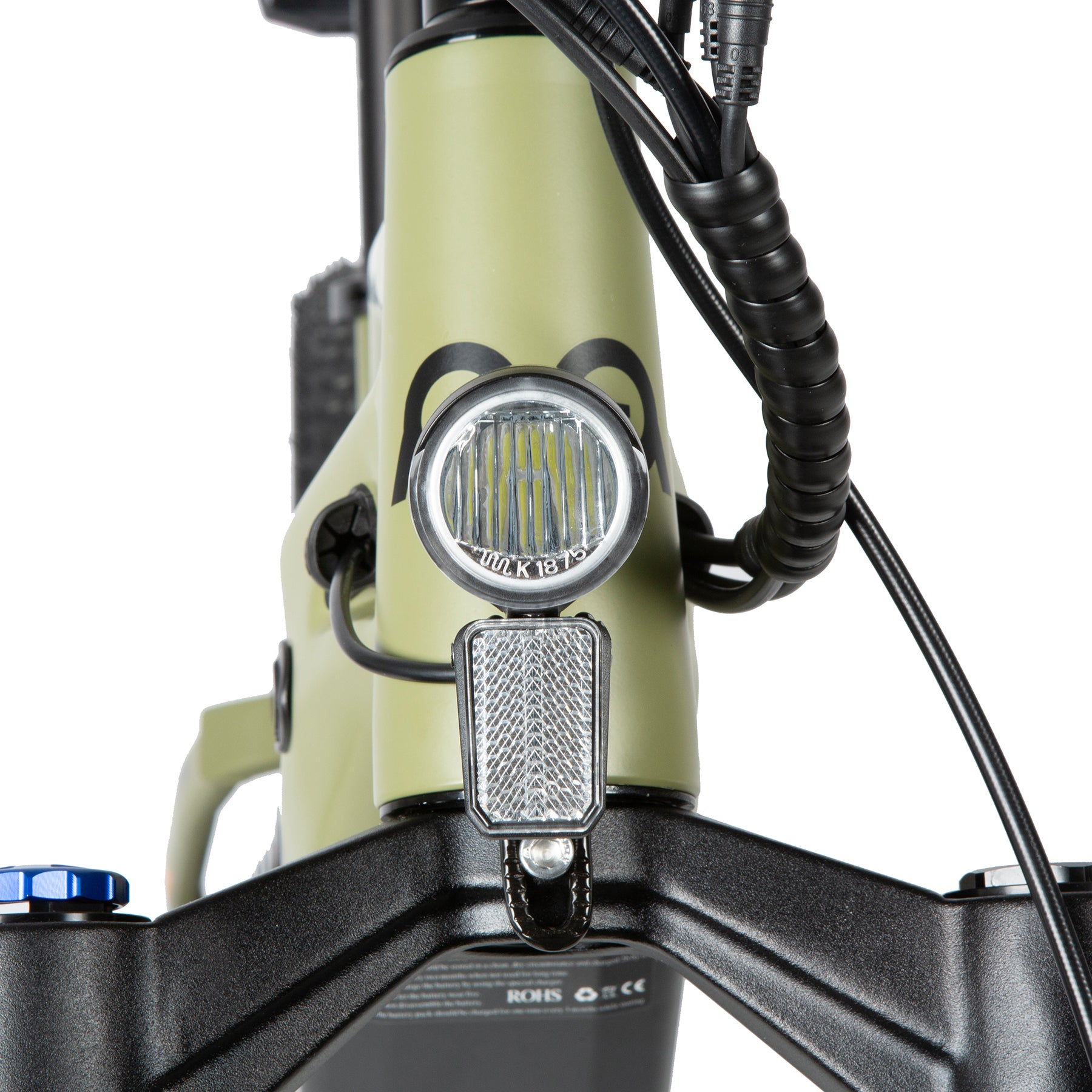

• Front Light: LED light
• Tool: Included
• Chainring: 40T BAFANG chain-wheel with protection
• Rims: 26 inch black alloy wheels
